Atco 010-R6_14X5FT R6 Pipe Insulation Sleeve 14 Inch X 5 Ft

Product Description

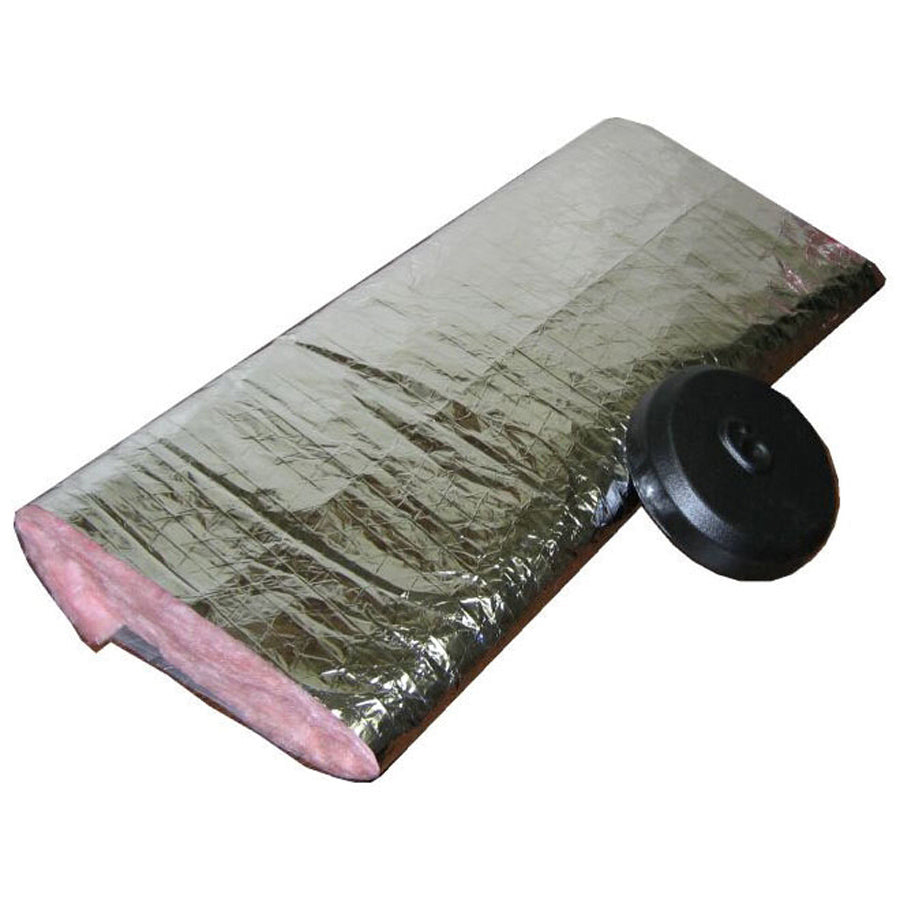

The ATCO RUBBER PRODUCTS 010-R6_14X5FT is a fiberglass pipe insulation sleeve rated R6, designed to insulate 14-inch round duct pipe or pipe in indoor HVAC applications. The sleeve combines a thick fiberglass insulation blanket with a reinforced metalized polyester vapor barrier jacket, giving HVAC technicians a single-piece assembly that handles both thermal performance and moisture control. Pre-cut at 5 feet per section, it eliminates field cutting and reduces installation time compared to conventional duct wrap. The unit ships with a starter cap included. Rated for temperatures from -20 degrees F to 250 degrees F, it meets UL 181B standards for indoor HVAC systems.

This sleeve is intended for indoor HVAC installations requiring insulated pipe runs on 14-inch pipe. The flat blanket format allows technicians to wrap and secure the sleeve directly on-site without additional cutting tools or measuring. The 5-foot section length is sized to match common duct and pipe segment lengths, reducing scrap waste and labor time on both in-shop prefab and jobsite installation. The metalized polyester jacket serves as a reinforced vapor barrier to limit condensation and moisture intrusion along the pipe surface, which is especially important in humid mechanical rooms and air handler applications.

Key Features

• R6 thermal resistance rating for effective heat loss and gain reduction on large-diameter pipe
• Fiberglass insulation blanket construction with reinforced metalized polyester vapor barrier jacket
• Pre-cut 5-foot sections eliminate field cutting and reduce install labor
• Starter cap included in each section
• Flat sleeve format simplifies wrapping on 14-inch pipe without special tooling
• Meets UL 181B applicable standard for indoor HVAC use

Compatibility

Designed as an OEM-style insulation sleeve for 14-inch indoor HVAC pipe and duct applications requiring R6 thermal performance and a vapor barrier jacket.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the HVAC system and allow the pipe or duct to reach ambient temperature before applying insulation. Secure the sleeve per the manufacturer instructions and local mechanical code requirements, referencing IMC or ASHRAE 90.1 guidelines where applicable. Do not compress the fiberglass blanket during installation, as compression reduces the effective R-value.

Technical Specifications

• R-Value: R6
• Pipe Size: 14 inches
• Section Length: 5 feet
• Insulation Material: Fiberglass Blanket
• Jacket Material: Reinforced Metalized Polyester
• Type: Flat Blanket Sleeve
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Application: Indoor HVAC System
• Inclusions: Starter Cap
• Applicable Standard: UL 181B

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_14X5FT
