Atco 010-R6_12X5FT R6 Pipe Insulation Sleeve 12in X 5ft

Product Description

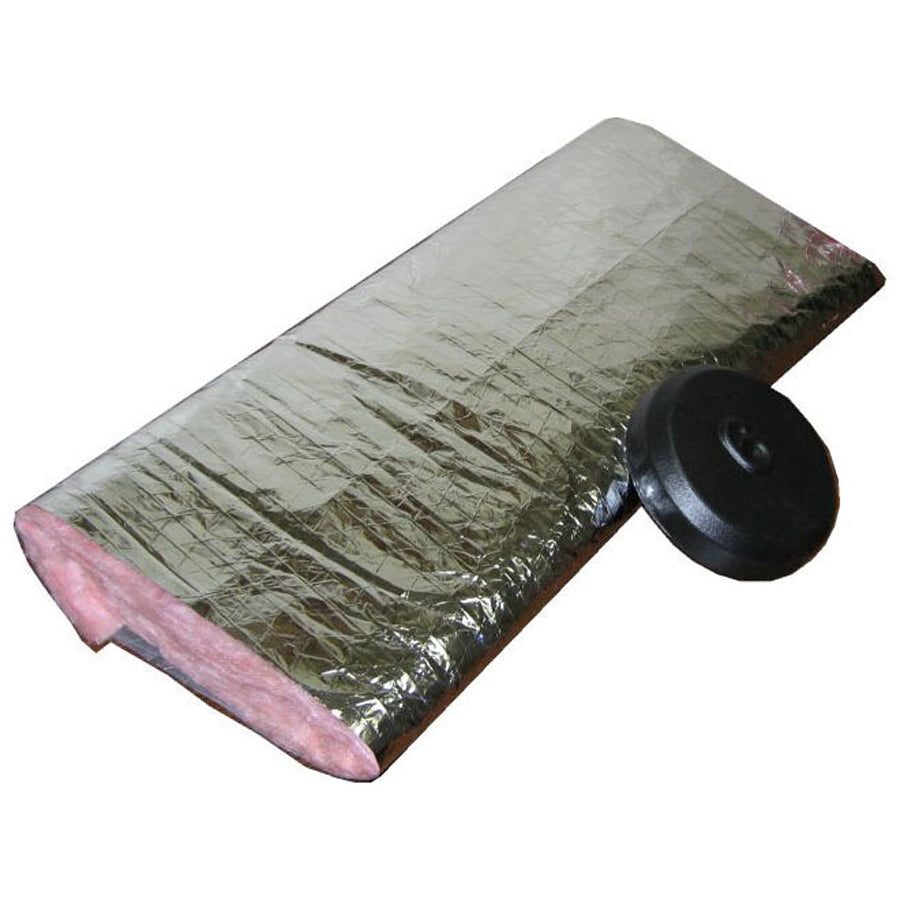

The ATCO RUBBER PRODUCTS 010-R6_12X5FT is a flat-style fiberglass pipe insulation sleeve designed for indoor HVAC applications. It features a thick fiberglass insulation blanket core rated R6 for thermal efficiency, wrapped in a reinforced metalized polyester vapor barrier jacket. Each section ships in a 5-foot length, eliminating the need for field cutting and reducing installation time compared to duct wrap methods. The sleeve is rated for temperatures from -20 degrees F to 250 degrees F and meets UL 181B standards. Licensed HVAC technicians and insulation contractors are the primary installers of this product on piping runs within mechanical systems.

This sleeve is suited for indoor HVAC system piping where thermal loss control and vapor protection are required. The flat configuration allows it to wrap around pipe runs cleanly without bulking. The 12-inch pipe size designation and 5-foot section length make it practical for larger-diameter piping found in commercial and residential mechanical rooms. The included starter cap supports a complete installation at pipe terminations and fittings. Pre-cut 5-foot sections reduce both in-shop prep time and jobsite waste, lowering overall labor cost relative to field-applied duct wrap.

Key Features

• R6 fiberglass insulation blanket core for effective thermal performance
• Reinforced metalized polyester vapor barrier jacket resists moisture intrusion
• Pre-cut 5-foot sections reduce jobsite cutting and material waste
• Rated for temperatures from -20 degrees F to 250 degrees F
• Flat blanket style installs faster than duct wrap on large-diameter pipe
• Starter cap included for clean termination at pipe ends and fittings
• Meets UL 181B applicable standard

Compatibility

Designed for indoor HVAC system piping with a nominal pipe size of 12 inches. Intended for use where UL 181B-compliant insulation with a reinforced vapor barrier jacket is specified.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified insulation contractor. Power down and lock out the associated HVAC system before working on piping in active mechanical systems. Secure the sleeve and vapor barrier seams per UL 181B requirements using approved closure tape or fasteners. Inspect all seams and the starter cap fitment for continuity of the vapor barrier before returning the system to service.

Technical Specifications

• Insulation Type: Fiberglass Blanket
• Jacket Material: Reinforced Metalized Polyester
• Thermal Rating: R6
• Pipe Size: 12 inches
• Section Length: 5 feet
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Configuration: Flat Blanket
• Application: Indoor HVAC System
• Applicable Standard: UL 181B
• Inclusions: Starter Cap

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_12X5FT
