Atco 010-R6_10X5FT R6 Pipe Insulation Sleeve 10 Inch X 5 Ft

Product Description

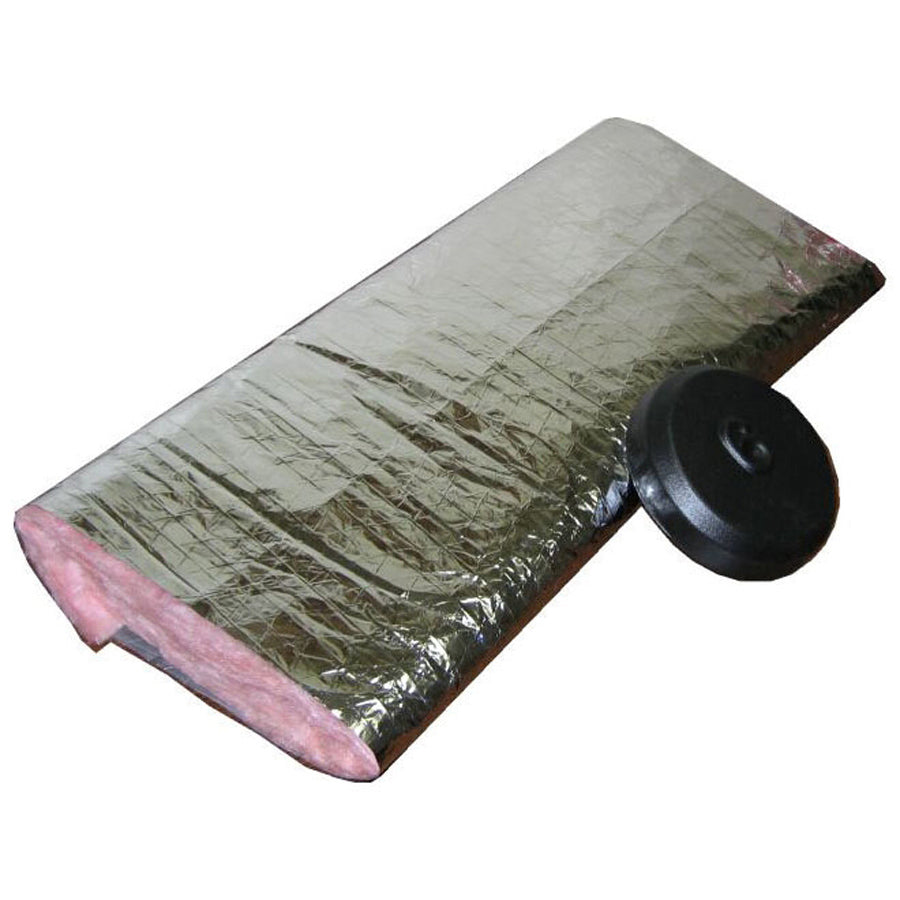

The ATCO RUBBER PRODUCTS 010-R6_10X5FT is an R-6 fiberglass pipe insulation sleeve designed for indoor HVAC applications. It consists of a thick fiberglass insulation blanket wrapped in a reinforced metalized polyester vapor barrier jacket. Each section measures 10 inches in diameter by 5 feet in length, supplied flat for straightforward field application. The R-6 thermal rating delivers strong resistance to heat transfer, helping reduce energy loss on supply and return piping. The reinforced metalized polyester jacket serves as an integrated vapor barrier, limiting moisture infiltration. The sleeve is rated for temperatures from -20 degrees F to 250 degrees F and meets UL 181B standards.

This insulation sleeve is suited for indoor HVAC system piping where a pre-cut, pre-sized wrap is preferred over loose duct wrap material. The 5-foot flat section length eliminates the need for in-shop or jobsite cutting to length, reducing labor time compared to conventional duct wrap application. A starter cap is included. Licensed HVAC technicians and sheet metal contractors typically install this product during new construction, system retrofits, or insulation replacement on large-diameter ductwork and piping runs in commercial and residential settings.

Key Features

• R-6 thermal rating for effective resistance to heat transfer on HVAC piping
• Fiberglass insulation blanket construction for durable, consistent thermal performance
• Reinforced metalized polyester vapor barrier jacket limits moisture infiltration
• Pre-cut 5-foot flat sections reduce in-shop and jobsite cutting time
• Includes starter cap for a complete installation assembly
• UL 181B listed for indoor HVAC system applications

Compatibility

Designed for use on 10-inch indoor HVAC piping and ductwork requiring flat-style pipe insulation sleeves with an integrated vapor barrier jacket, rated to UL 181B standards.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the HVAC system and allow all piping surfaces to reach ambient temperature before applying insulation. Ensure the pipe or duct exterior is clean and dry prior to fitting the sleeve to promote proper jacket adhesion and vapor barrier integrity. Secure seams and joints per UL 181B-listed closure system requirements as applicable under local mechanical codes.

Technical Specifications

• Pipe Size: 10 inches
• Length: 5 feet
• R-Value: R-6
• Insulation Material: Fiberglass blanket
• Jacket Material: Reinforced metalized polyester vapor barrier
• Type: Flat blanket sleeve
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Application: Indoor HVAC system
• Applicable Standard: UL 181B
• Inclusions: Starter cap

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_10X5FT
