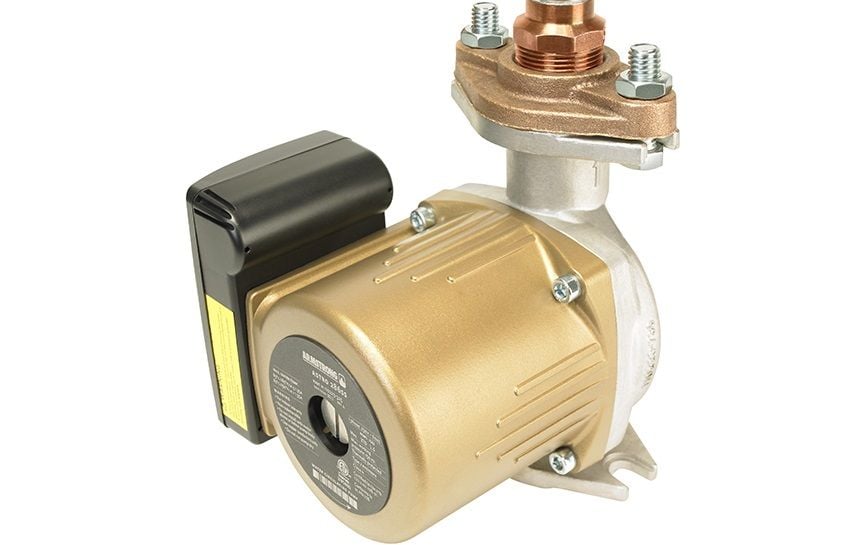

Armstrong Fluid Technology 110223-308 Astro 2 250SS 3/4 Inch to 1-1/2 Inch Stainless Steel Circulator Pump

Product Description

The Armstrong Fluid Technology model 110223-308 Astro 2 250SS is a high-performance stainless steel circulator pump designed for residential heating and cooling systems. This pump features a variable three-speed, single-phase motor with flanged connections ranging from 3/4 inch to 1-1/2 inch.

• Variable motor speeds for optimal flow control.
• Stainless steel construction ensures durability and corrosion resistance.
• Includes a high-flow check valve for backflow prevention.

Product Highlights

This pump is capable of handling flow rates up to 64 GPM and can achieve a maximum head of 42 feet. The ceramic bearings and shaft, along with a Noryl impeller, contribute to its reliability and long service life. An e-coating inside the cast iron volutes enhances corrosion protection.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• MPN: 110223-308

Technical Specifications

• Motor Voltage: 115V
• Motor Phase: 1 Ph
• Motor Speeds: 3
• Pump Connection Size: 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch
• Max Working Pressure: 150 psi
• Max Temperature: 230 degrees Fahrenheit
