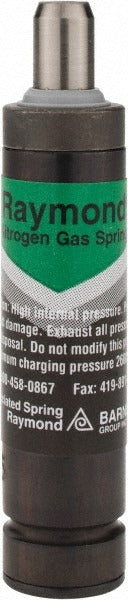

Associated Spring Raymond R12-080 Ye Nitrogen Gas Spring

Product Description

The ASSOCIATED SPRING RAYMOND R12-080 YE is a nitrogen gas spring designed for use in tooling, die stamping, metal forming, and industrial pressing applications. It delivers 112 lbf at initial extension and 164 lbf at full stroke, maintaining consistent force throughout the stroke cycle. The spring is pre-charged to 2,600 psi with nitrogen gas sealed internally, eliminating the need for external air lines or hydraulic connections. With a body diameter of 0.472 inches and an overall length of 8.07 inches, this compact unit fits tight die spaces. A yellow color code identifies the force range for quick field identification. Licensed trades and tooling engineers install this component in progressive dies, stamping presses, and fixture assemblies.

This nitrogen gas spring is suited for light-duty metal forming and die work where a compact, self-contained spring element is required. The 3.15-inch maximum stroke supports a wide range of forming depths. It is appropriate for both OEM die builds and replacement service in existing tooling assemblies. The yellow color designation is a standard industry marker for this force class, making it straightforward to cross-reference and reorder during die maintenance.

Key Features

• 164 lbf full stroke force and 112 lbf initial force for consistent forming pressure
• Pre-charged to 2,600 psi nitrogen - no external air supply required
• 3.15-inch maximum stroke accommodates a range of forming depths
• 0.472-inch body diameter fits compact die cavities
• Yellow color coding identifies force class for fast visual reference
• 4.84-inch body length with 8.07-inch overall length for space-efficient installation

Compatibility

Designed as an OEM-style replacement or new-build component for nitrogen gas spring applications in industrial stamping dies, metal forming fixtures, and similar tooling assemblies requiring a 12 mm diameter self-contained gas spring.

Installation Notes

Installation is performed by tooling engineers or die maintenance technicians. Before servicing or replacing a nitrogen gas spring in an active die, fully de-stroke and secure the press ram, and verify the spring is fully extended and depressurized per the tool designer's procedure. Do not attempt to disassemble, re-charge, or drill into the sealed body - nitrogen is stored at high pressure. Follow the tooling OEM's mounting specifications for bore fit, retention, and alignment to prevent side-loading during operation.
