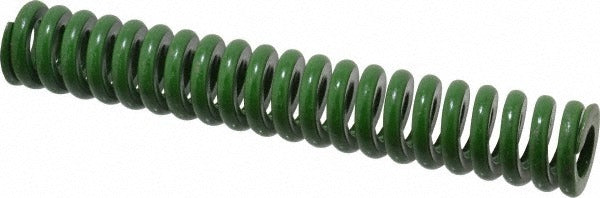

Associated Spring Raymond 106-632 Die Spring Green

Product Description

The ASSOCIATED SPRING RAYMOND 106-632 is a heavy-duty die spring designed for use in stamping dies, punch presses, and tooling fixtures where consistent, controlled force is required. Built from chromium alloy steel with a trapezoidal wire profile, this spring delivers a spring rate of 460 pounds per inch and handles a maximum deflection load of 832 pounds over a maximum deflection of 2 inches. The green color coding identifies it within a standard heavy-load classification range. With a 1-1/4 inch hole diameter and 8 inch free length, it fits a broad range of die and press tooling setups. Installation is typically performed by tool and die makers or maintenance technicians.

This die spring is suited for industrial tooling applications including metal stamping, injection molding fixtures, and mechanical press components. The 5/8 inch rod diameter and 1-1/4 inch hole diameter make it compatible with standard die set configurations in both production and job-shop environments. The chromium alloy steel construction provides resistance to fatigue under repeated cycling, making it appropriate for high-cycle tooling operations.

Key Features

• Chromium alloy steel construction for fatigue resistance under repeated load cycles
• Trapezoidal wire cross-section for higher load capacity relative to round-wire springs of similar size
• Green color coding indicating heavy-load spring classification
• Spring rate of 460 pounds per inch for predictable force output
• Maximum deflection load of 832 pounds at 2 inches of travel
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a direct-fit die spring for standard tooling applications requiring a 1-1/4 inch hole diameter, 5/8 inch rod diameter, and 8 inch free length in the heavy-load green classification.

Installation Notes

Die springs should be installed by qualified tool and die technicians or maintenance personnel familiar with press and fixture tooling. Always de-energize and lock out the press or machine before servicing any tooling components. Do not compress the spring beyond its rated maximum deflection of 2 inches, as exceeding this limit accelerates fatigue failure. Inspect the spring for set, cracking, or coil contact at regular maintenance intervals.
