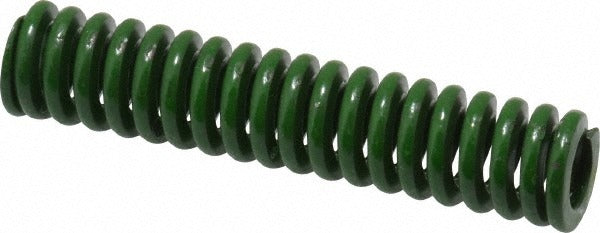

Associated Spring Raymond 106-107 Die Spring Green

Product Description

The ASSOCIATED SPRING RAYMOND 106-107 is a green-coded die spring engineered for high-load tooling and press applications. It features a 0.375-inch hole diameter, a 0.1875-inch rod diameter, and a free length of 1.75 inches. The trapezoidal wire cross-section delivers a higher load capacity per unit length compared to round-wire designs. With a maximum deflection load of 50.3 pounds and a maximum deflection of 0.44 inches, this spring is suited for demanding stamping and die tooling environments where consistent spring force and long cycle life are required. Licensed HVAC, tooling, and mechanical trades commonly specify this part for precision die sets.

This die spring is used in stamping dies, punch presses, and industrial tooling fixtures where controlled compression force and accurate return stroke are critical. The green color coding indicates a standard load class per ISO die spring conventions, making it straightforward to specify as a direct replacement during die maintenance or rebuild. It is appropriate for both light industrial and production tooling setups where a 0.375-inch hole and 0.1875-inch rod diameter are called out in the die design.

Key Features

• Trapezoidal wire shape provides higher load density than round-wire springs of equivalent size
• Maximum deflection load of 50.3 pounds at 0.44 inches deflection
• Spring rate of 105 pounds per inch for predictable, linear force characteristics
• Green color coding identifies standard load class for quick field identification
• Chromium alloy steel construction for durability under repeated compression cycles
• Meets ISO 9001:2008 and ISO/TS 16949:2009 quality standards

Compatibility

Designed as an OEM-style replacement die spring for tooling applications specifying a 0.375-inch hole diameter, 0.1875-inch rod diameter, and 1.75-inch free length in the green standard-load class.

Installation Notes

Die springs should be installed by qualified tooling or mechanical technicians familiar with press and stamping die assemblies. Always de-energize and lock out the press before servicing the die set. Ensure the mating rod diameter and bore diameter in the die plate match the spring specifications before installation. Never compress a die spring beyond its rated maximum deflection, as over-compression will permanently reduce spring rate and cycle life.
