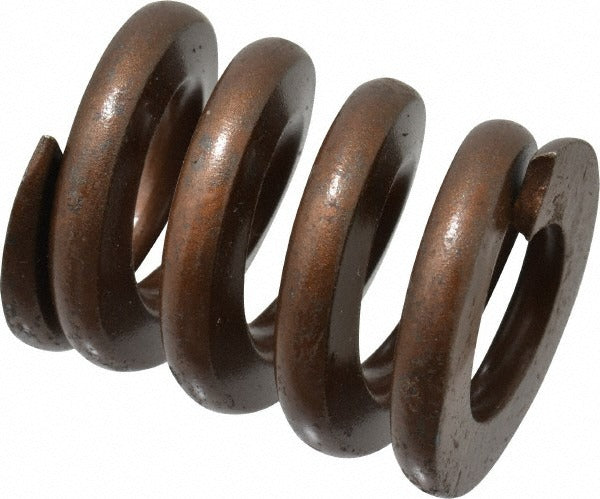

Associated Spring Raymond 105-606 Die Spring Heavy-duty Gold

Product Description

The ASSOCIATED SPRING RAYMOND 105-606 is a heavy-duty die spring engineered for high-load tooling and stamping applications. It features a 1-1/4 inch hole diameter, a 5/8 inch rod diameter, and a 1-1/2 inch free length. The trapezoidal wire cross-section provides a higher spring rate compared to round-wire designs, delivering a spring rate of 2,200 pounds per inch and a maximum deflection load of 954 pounds at 0.45 inches of maximum deflection. Manufactured from chromium alloy steel, this spring is built to handle the repetitive compressive cycles common in die and press tooling environments. The gold color coding identifies it as a heavy-duty rating per standard die spring classifications.

This die spring is suited for use in stamping dies, punch presses, injection molds, and similar industrial tooling applications. The heavy-duty rating makes it appropriate for high-force clamping, stripping, and ejection functions within die sets. It is installed and serviced by tool and die makers, mold technicians, and maintenance machinists working on production tooling in manufacturing facilities. The compact 1-1/2 inch free length fits confined die spaces where load capacity must be maximized in a short travel envelope.

Key Features

• Heavy-duty load rating with a 954 pound maximum deflection load
• Spring rate of 2,200 pounds per inch for predictable, consistent force output
• Trapezoidal wire shape increases load capacity relative to overall spring size
• Chromium alloy steel construction for fatigue resistance under cyclic loading
• Gold color coding for quick identification of heavy-duty duty rating
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a standard heavy-duty die spring for use in tooling applications requiring a 1-1/4 inch hole diameter and 5/8 inch rod diameter mounting envelope with a 1-1/2 inch free length.

Installation Notes

Die springs should be installed by qualified tool and die or maintenance personnel with the die set fully de-energized and the press locked out per applicable lockout/tagout procedures. Never compress a die spring beyond its rated maximum deflection, as over-compression causes rapid fatigue failure. Inspect springs regularly for set, cracking, or corrosion and replace as a set when servicing a die to maintain balanced load distribution.
