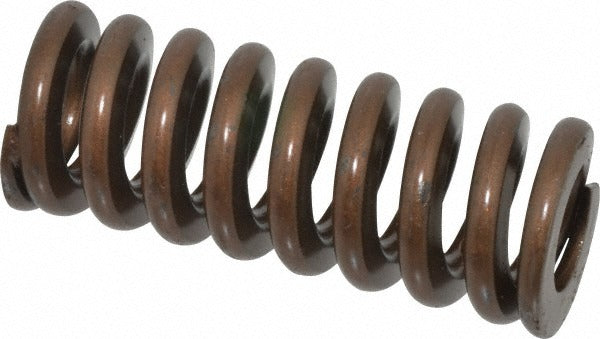

Associated Spring Raymond 105-510 Die Spring Heavy-duty Gold

Product Description

The ASSOCIATED SPRING RAYMOND 105-510 is a heavy-duty die spring engineered for high-load stamping, pressing, and tooling applications. It features a 1 inch hole diameter, a 0.5 inch rod diameter, and a 2.5 inch free length. Constructed from chromium alloy steel with a trapezoidal wire profile, this spring delivers a spring rate of 665 pounds per inch and a maximum deflection load of 510 pounds at 0.75 inches of travel. The gold color coding identifies its heavy-duty duty rating per industry standard die spring classifications. Toolmakers and die maintenance technicians specify this part for press tooling setups where consistent force and cycle life are critical.

The 105-510 is used in metal stamping dies, punch press tooling, injection mold stripper plates, and similar industrial press applications. Its heavy-duty rating makes it suitable for high-frequency cycling environments where lighter-duty springs would fatigue prematurely. The trapezoidal wire cross-section maximizes load capacity within the spring envelope, allowing more force in a compact space compared to round-wire alternatives. This spring is a standard fitment in machine shops, tool-and-die operations, and production stamping facilities.

Key Features

• Heavy-duty duty rating with gold color coding for quick identification in multi-spring die setups
• Trapezoidal wire cross-section provides higher load capacity per unit length than standard round-wire springs
• 510 pound maximum deflection load at 0.75 inches maximum deflection
• Spring rate of 665 pounds per inch for predictable, consistent force output
• Chromium alloy steel construction for fatigue resistance under high-cycle conditions
• Manufactured under ISO 9001:2008, ISO/TS 16949:2009, and TUV Rheinland registered quality systems

Compatibility

Designed as an OEM-style replacement or direct-fit component for heavy-duty die spring applications requiring a 1 inch hole diameter, 0.5 inch rod diameter, and 2.5 inch free length per standard die spring dimensional specifications.

Installation Notes

Die springs are installed and serviced by tool-and-die technicians and press maintenance personnel. Always de-energize and lockout the press before removing or replacing die springs. Springs should be inspected for set, cracking, or corrosion at each die service interval and replaced as a matched set when multiple springs share a load. Do not exceed the rated maximum deflection of 0.75 inches to avoid permanent set or premature failure.
