Associated Spring Raymond 103-110 Die Spring Medium-duty Blue

Product Description

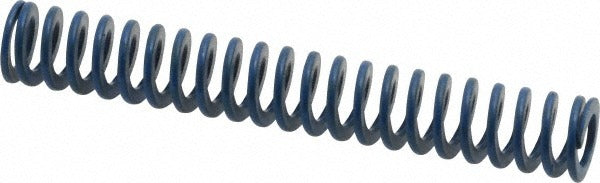

The ASSOCIATED SPRING RAYMOND 103-110 is a medium-duty die spring designed for use in metal stamping dies, punch tooling, and similar press applications. Built from chromium alloy steel with a trapezoidal wire cross-section, it delivers consistent force and controlled deflection under repeated cycling. The spring features a 0.375-inch hole diameter, a 0.1875-inch rod diameter, and a free length of 2.5 inches. Maximum deflection load is 30 pounds at a maximum deflection of 1.25 inches, with a spring rate of 26 pounds per inch. The blue color coding indicates medium-duty classification per standard die spring conventions. Licensed HVAC, tooling, and industrial maintenance technicians will encounter this spring in hydraulic and mechanical press tooling.

This die spring is suited for medium-duty press tooling and fixture applications in manufacturing and industrial maintenance environments. It fits standard die sets where a 0.375-inch hole diameter and a 0.1875-inch rod diameter are required. The 2.5-inch free length and 1.25-inch maximum deflection make it appropriate for moderate-stroke applications in metal forming, blanking, and stamping operations. Industrial maintenance technicians and tooling specialists install this component during die rebuilds and press tooling service.

Key Features

• Chromium alloy steel construction for durability under repeated compression cycles
• Trapezoidal wire shape increases load capacity relative to round-wire springs of comparable size
• Blue color coding denotes medium-duty classification for quick field identification
• 30-pound maximum deflection load with a 26 pounds-per-inch spring rate
• 1.25-inch maximum deflection within a 2.5-inch free length
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems with TUV Rheinland registration

Compatibility

Designed as a direct-fit medium-duty die spring for press tooling and die sets requiring a 0.375-inch hole diameter and a 0.1875-inch rod diameter with a 2.5-inch free length.

Installation Notes

Installation should be performed by qualified tooling technicians or industrial maintenance personnel with press equipment de-energized and all stored mechanical energy released before accessing the die set. Inspect the mating rod and bore for proper clearance before seating the spring to avoid binding under compression. Do not compress the spring beyond its rated maximum deflection of 1.25 inches, as over-compression will reduce service life. Follow applicable shop safety procedures and equipment manufacturer guidelines when servicing press tooling.
