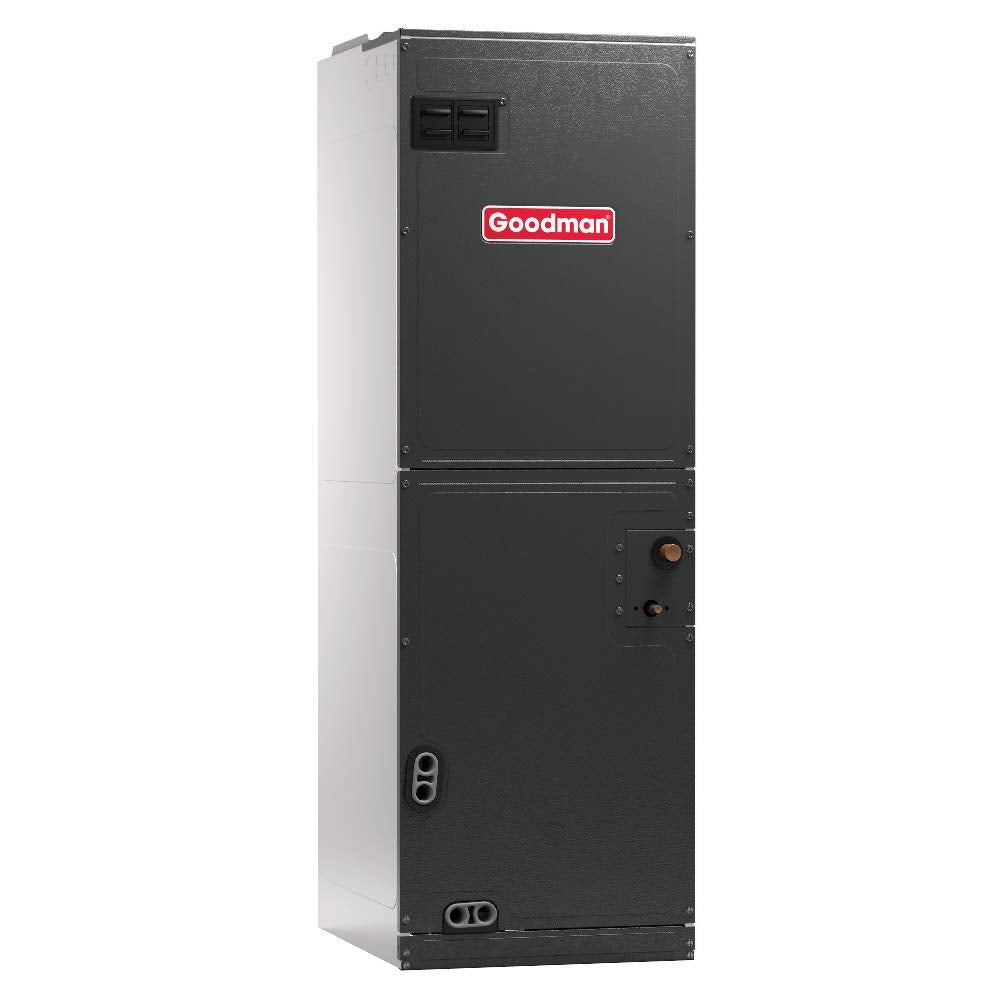

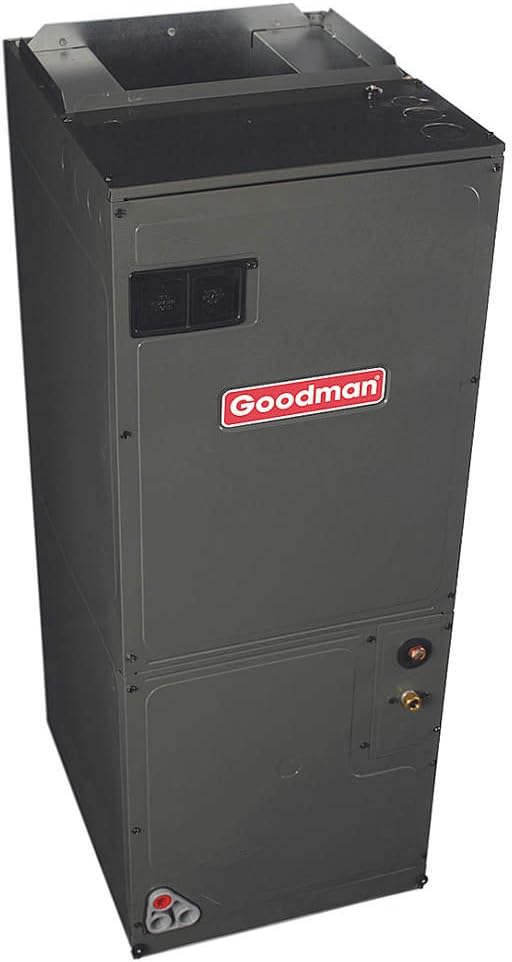

Goodman ASPT61D14 Multi Position Air Handler Featuring Smartframe 5 Ton

Product Description

The Goodman ASPT61D14 is a versatile multi-position air handler featuring Smartframe Cabinet, optimized for 5-ton cooling capacity. It is designed for upflow, downflow, and horizontal applications, making it adaptable for various installations.

• Internal factory-installed thermal expansion valves
• All-aluminum evaporator coil
• Cabinet air leakage is less than 2.0 percent at 1.0 inch H2O

Product Highlights

The Goodman ASPT61D14 air handler comes with multi-position functionality, Smartframe Cabinet design, and a 5-ton capacity, providing reliable airflow and performance.

Product Information

Standard Information

• Brand: Goodman
• MPN: ASPT61D14
• Dimensions: 21 x 24.5 x 58 inches
• Weight: 4.54 grams

Technical Specifications

• Nominal Cooling Capacity (Tons): 5 ton
• Maximum Airflow: 2,185 cfm at 0.5 in wc
• Nameplate Voltage: 208/230V AC
• Phase: 1
• Current: 8 A
• Frequency: 60 Hz
• Motor Horsepower: 1 hp
• Motor Type: Multi-speed blower
• Refrigerant Type: R410A
• Expansion Device Type: Expansion Valve
• Supply Dimensions: 23 in W x 21 in D
• Return Dimensions: 23 in W x 21 in D
