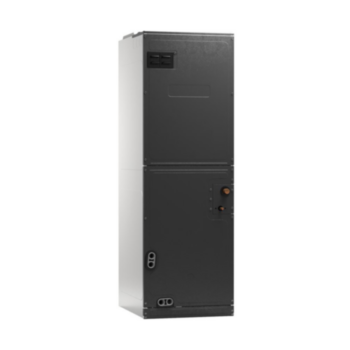

ASPT Ducted Multi-position Air Handler, Fixed Speed ECM Motor, 2.5 Ton, 21 in Cabinet with TXV Expansion,
Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1Ω to 5 Tons
Features:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-410A refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3 kW ñ 25 kW electric heater kits
- AHRI certified
- ETL listed
Benefits:
- Check flowrater for heat pump and cooling-only applications
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
- High-efficiency evaporator coil
- Quiet operation
- Models with PSC motors
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- 1Factory-installed pull-type disconnect
- 1Easy service access
- 1AHRI Certified
- ETL Listed
Cabinet Features:
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21î depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
