Aspen Pumps 83205 Ez Trap Ezt205 3/4 Deep Trap W/Switch

Product Description

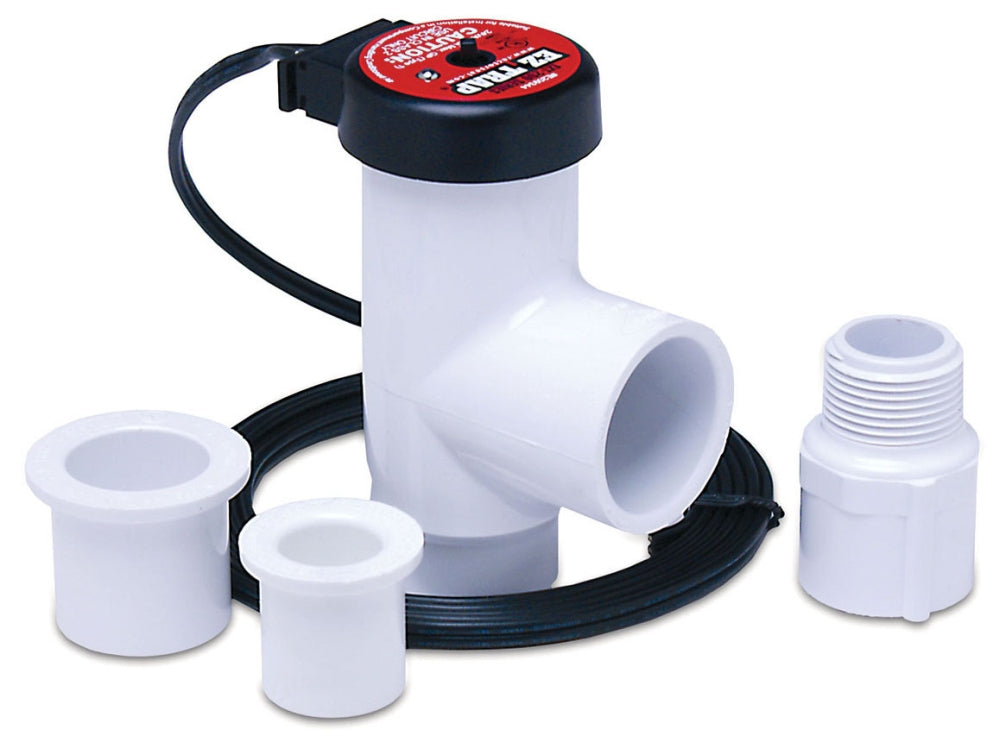

The ASPEN PUMPS 83205 Ez Trap Ezt205 is a trap kit designed for condensate and air conditioner systems. This transparent, deep smart trap kit features a standard 3/4 inch size and includes a float switch assembly with a 72-inch cable and a cleaning brush. It conforms to UL (Canada and US), UL 508, and 75MF standards.

• Features microswitch technology for proven reliability and higher switching capacity.
• Transparent trap design allows for easy cleaning and inspection.
• Includes watertight red caps for easy access to clean the trap and drain pan outlet.

Product Highlights

This trap kit provides reliable overflow protection and easy maintenance for HVAC systems, with a float switch that warns of blockage and shuts down the A/C unit.

Product Information

Standard Information

• Brand: ASPEN PUMPS
• Manufacturer Part Number: 83205

Technical Specifications

• Brand Name: EZ TRAP
• CATALOG NUMBER: 83205
• Category: HVAC/R & Fans
• Color Finish: Clear
• Item: Trap Kit
• Manufacturer Name: Aspen Pumps
• Manufacturer Part Number: 83205
• Manufacturer Part Number Additional: EZT205
• Series/Model: 200
• Size: 3/4 Inch (Trap)
• UNSPSC Code: 40101700
• Used On Item: Condensate/Air Conditioner
• Used On Model Brand: EZ TRAP
• Applicable Standard: UL (Canada and US), UL 508, 75MF
• Additional Information: Includes 1 Inch Cross, 1 Inch Red Cap, 1 Inch x 3/4 Inch Bushing, 3/4 Inch Tee, 3/4 Inch Black Stub, 3/4 Inch Male Adapter, Float Switch Assembly, 72 Inch Cable, Cleaning Brush
• Operation Mode: ON-OFF
• Current Rating: 4 Amps
• Operating Voltage: 24 Volts (AC)
• Contact Type: Normally Closed
• Connector Type: Crimp
• Terminal: Spade
• Circuit Type: parallel
• Mounting Type: Drain Line
• Contact Material: Copper
• International Protection Rating: UL508
• Number of Positions: 2
• Lower Temperature Rating: 32 Degrees Fahrenheit
• Upper Temperature Rating: 110 Degrees Fahrenheit
• Control Method: Sensor
• Wattage: 96 watts
• Unit Count: 1.0 Count
• Number of Items: 1
• Control Type: automatic
• Compatible Devices: HVAC systems (Air Conditioners, Heat Pumps)
