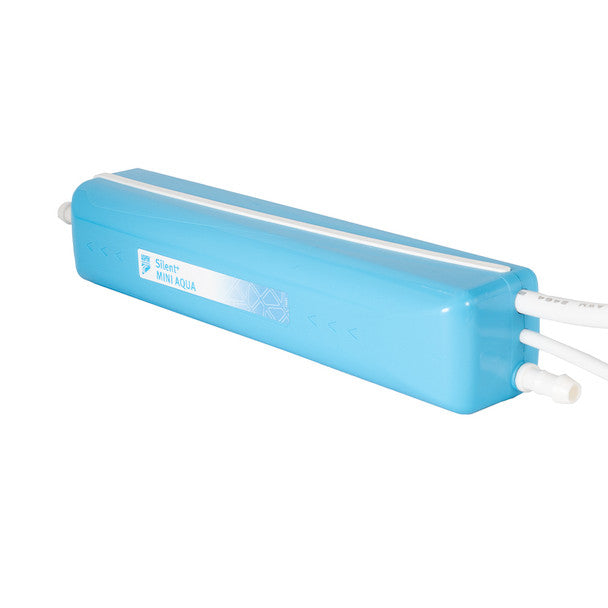

Aspen FP3420/MG Silent+ Mini Aqua Condensate Removal Pump, Gen 5

Product Description

The Aspen FP3420/MG Silent+ Mini Aqua Condensate Removal Pump, Gen 5 is a compact, ultra-quiet condensate pump for mini-split installations. Packed with 5th Gen Technology, it delivers quiet operation at 16dB(A), combined with intelligent, adaptive flow rates. This extends pump life, maximizes reliability and improves energy efficiency. Perfect for smaller commercial and domestic applications.

• Ultra quiet performance (as low as 16 dB(A)) for discreet operation
• Proven 5th Gen adaptive flow technology for efficient condensate control
• Max flow up to ~9.25 US Gal/hr (35 L/h) and up to 33 ft / 10 m head

Product Highlights

The Silent+Mini Aqua condensate pump offers unparalleled installation flexibility, fitting neatly into trunking and inside mini split units.

Product Information

Standard Information

• Brand: ASPEN PUMPS
• Manufacturer Part Number: FP3420/MG
• Country of Origin: China

Technical Specifications

• Max Flow Rate: 9.25 Gallons/hr @0 m head
• Max Unit Output: 136,000 BTU/h / 11.37 tons / 40 kW
• Max Recommended Head: 33 ft
• Max Suction Lift: 6'/1.5 m
• Inlet O.D.: 5/8" (Ø16 mm)
• Outlet O.D.: 1/4" (Ø6 mm)
• Sound Level @ 3 ft: As low as 16dB
• Max Water Temperature: 104 °F
• Self-Priming: Yes
• Assembled Weight (lbs): 1.65
• Country of Origin: China
• MFG Part # (OEM): FP3420/MG

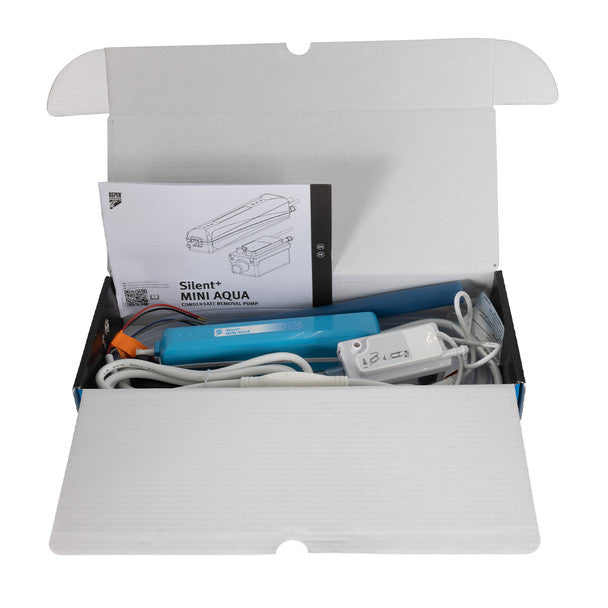

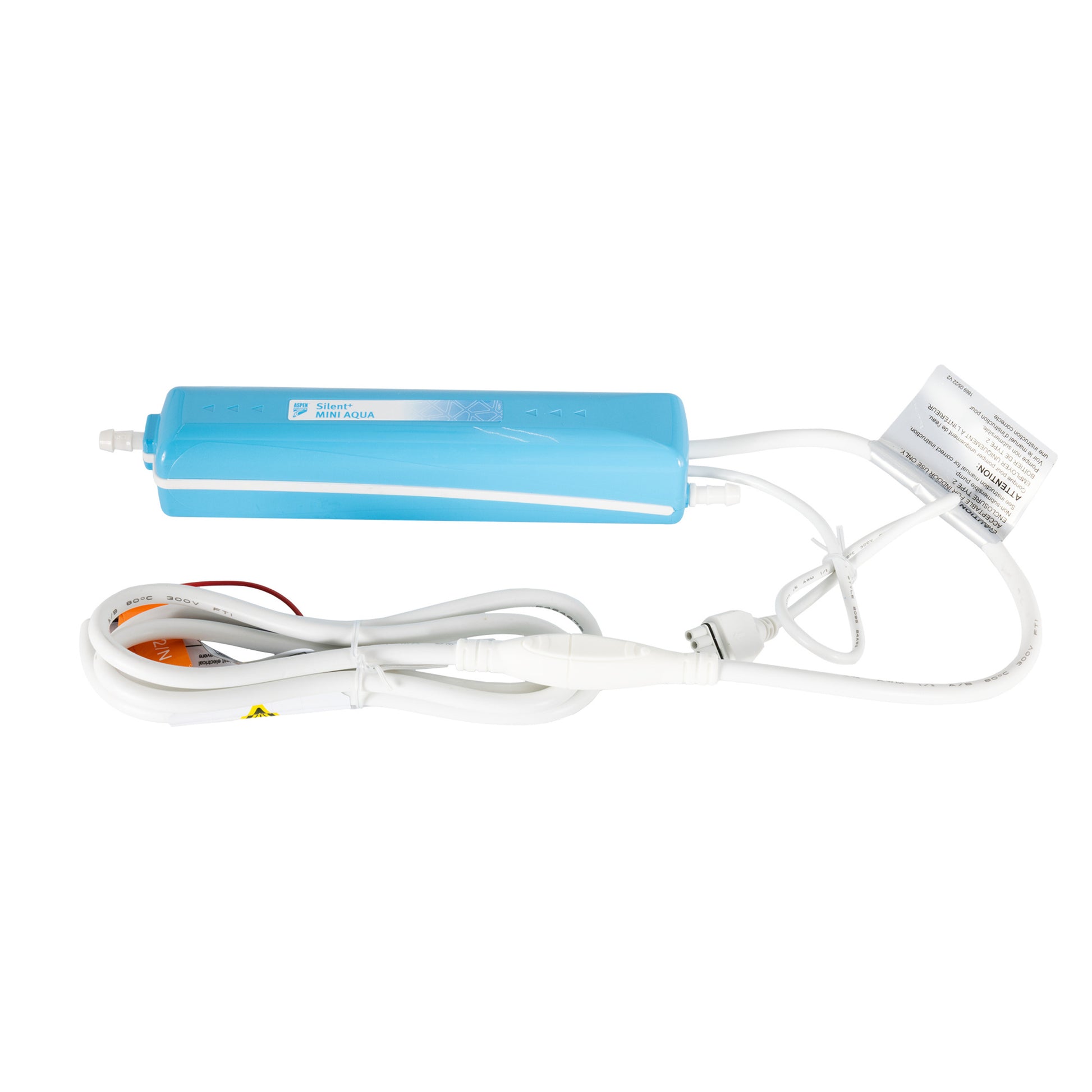

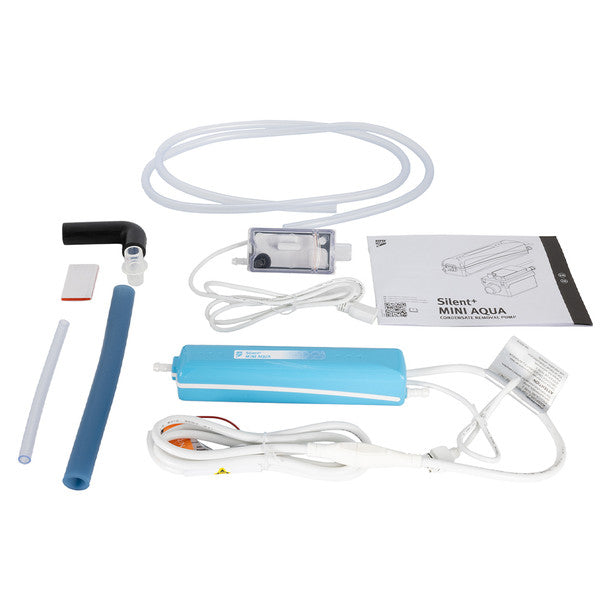

• Package Contents: Silent+ Mini Aqua pump (includes 4'11' Plug & Play cable), Reservoir (inc. filter and lid), 4'11" ft clear PVC tube, 5 7/8" in vent hose, 8 5/8" in inlet hose, Drain connector kit: straight connector and rubber elbow, Fixing Pad, & Quick Start Guide
• UPC: 686046559988
• Item Number: FP3420/MG
• Brand: ASPEN PUMPS
