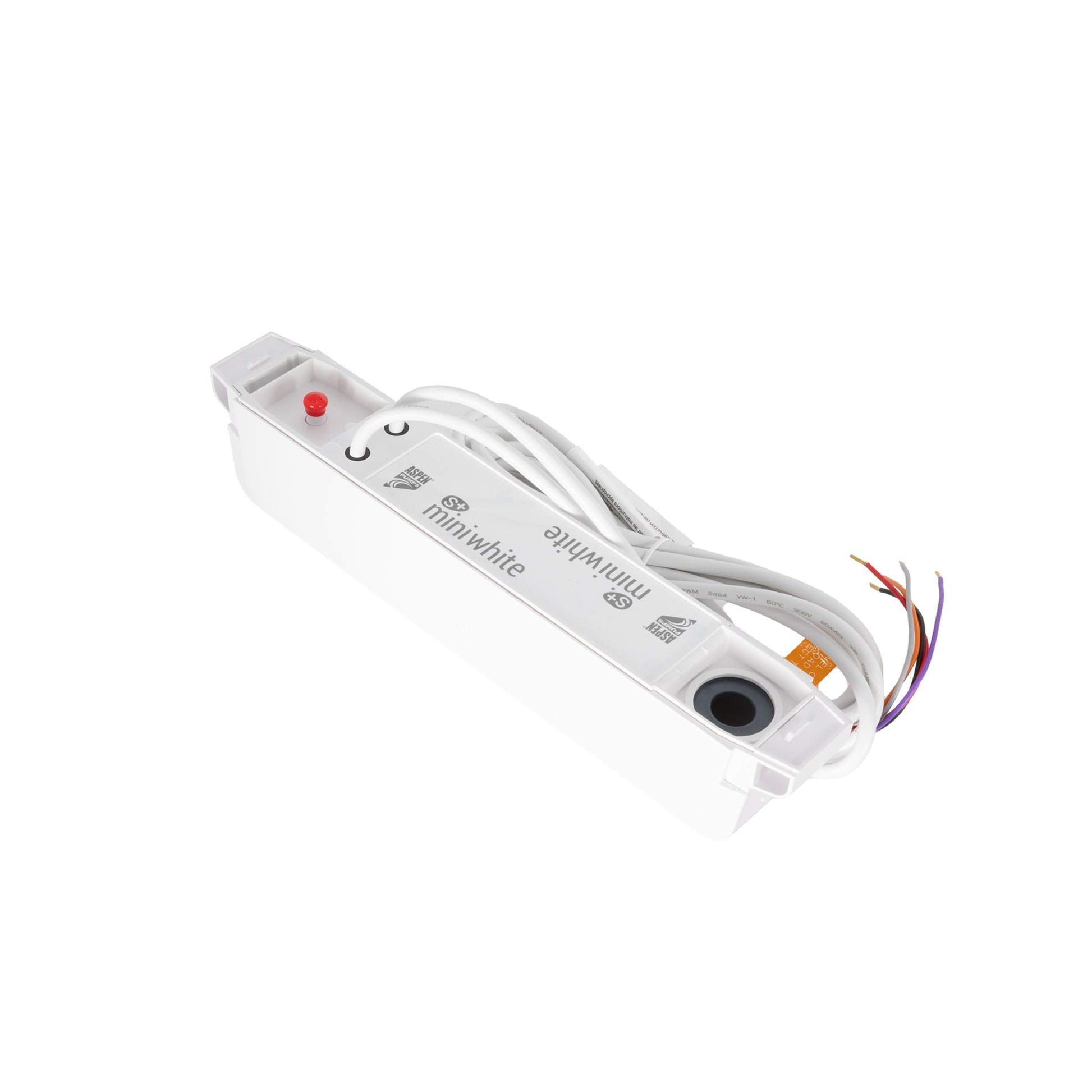

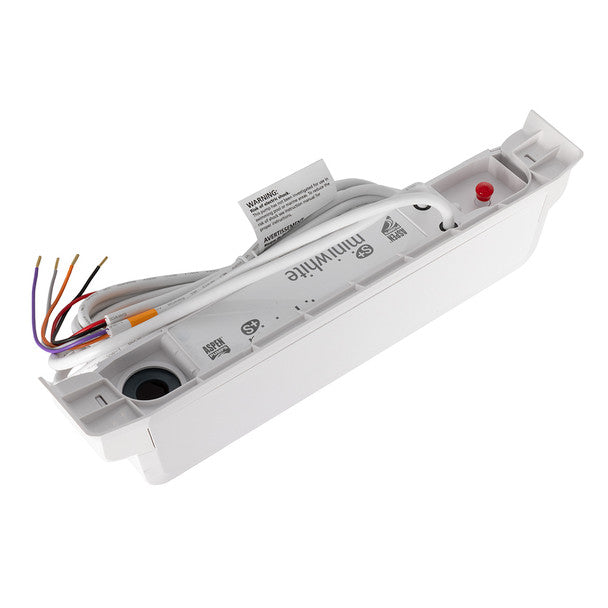

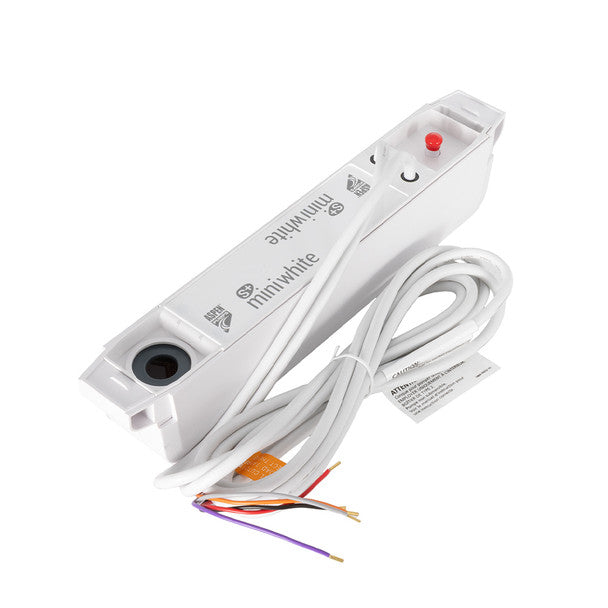

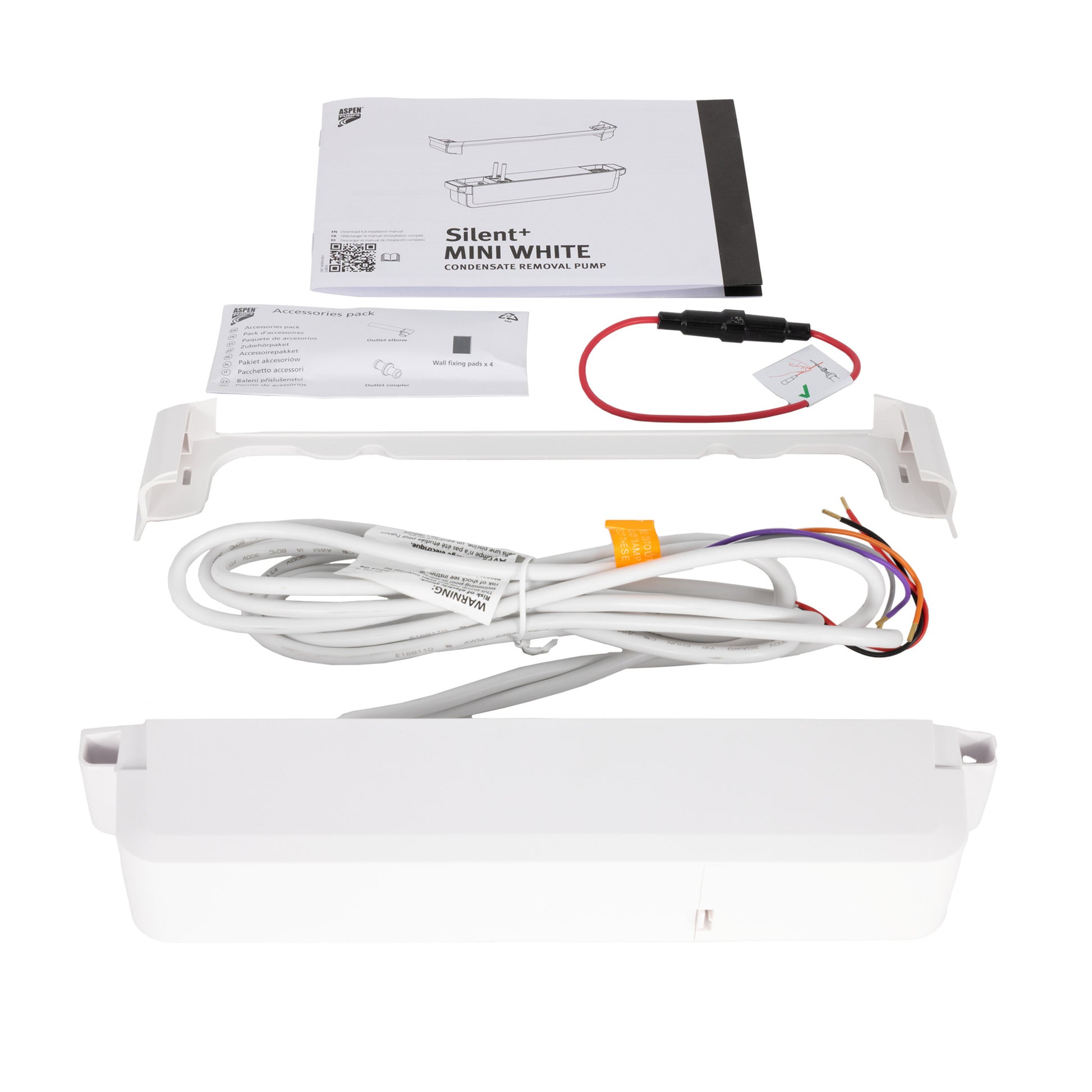

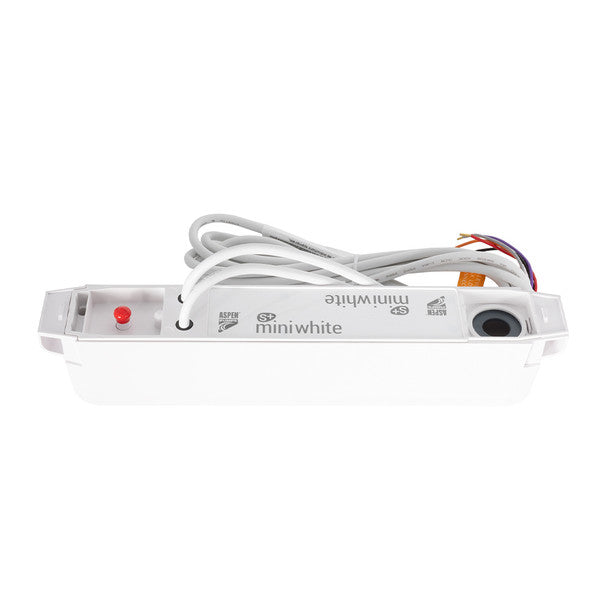

Aspen fp3400/mg silent+ mini condensate pump kit 100-250v rectorseal 83930

Product Description

The Aspen FP3400/MG Silent+ Mini Condensate Pump Kit is a compact, ultra-quiet condensate removal pump designed for mini-split installations. Operating with a universal 100-250V power supply, this pump features 5th-generation variable speed technology that intelligently adapts to condensate demand. It delivers whisper-quiet operation, making it suitable for noise-sensitive environments. This pump is engineered for efficient and reliable condensate removal in HVAC systems.

• Ultra-quiet operation as low as 16 dB(A) for noise-sensitive environments.
• Features 5th-generation variable speed technology for adaptive, on-demand condensate removal.
• Universal 100-250V power supply and compact design for flexible installation in mini-split systems.

Product Highlights

Quiet and efficient condensate removal for mini-split HVAC systems.

Product Information

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: FP3400/MG

Technical Specifications

• Product Type: Condensate Pump
• Input Voltage: 100-250V
• Cord Length: 5 ft
• Max Flow Rate: 12 GPH (45 L/h)
• Max Head: 33 ft (10 m)
• Max Unit Output: 157,000 BTU/h / 13 tons / 46 kW
• Inlet Diameter: 5/8 inch (16 mm)
• Outlet Diameter: 1/4 inch (6 mm)
• Noise Level: 16 dB(A)
• Max Water Temperature: 104 °F
• Self-Priming: Yes
• Technology: 5th-Generation variable-speed
• Mounting: Beneath wall-mounted mini-split indoor units
• Reservoir Type: Double-insulated, removable
• Protection Rating: IP24
• Safety Switch: Integrated high-level normally-closed
• Cross Reference Part Number: Rectorseal 83930
