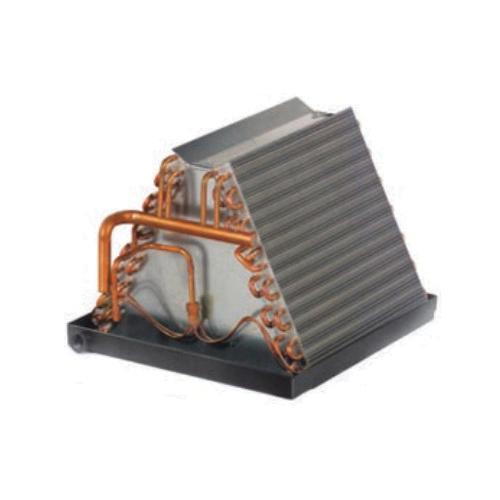

Aspen cm59a4g-177l-000 Uncased Mobile Home Coil 14 Seer

Product Description

The ASPEN cm59a4g-177l-000 is a copper uncased evaporator coil designed for mobile home HVAC applications. It supports up to 5 tons of cooling capacity in air conditioning mode and 3.5 tons in heat pump mode, with a 14 SEER efficiency rating. The coil is refrigerant-rated for R410A systems and features an all-copper construction for reliable heat transfer and long service life. Licensed HVAC technicians install this coil as the indoor-side heat exchanger in split-system configurations serving manufactured and mobile home units.

This coil is intended for residential mobile home and manufactured housing installations where an uncased coil is required. The uncased design allows for integration into existing or custom air handler cabinets common in mobile home HVAC setups. It is suited for split-system air conditioners rated up to 5 tons and heat pump systems rated at 3.5 tons operating with R410A refrigerant at 14 SEER.

Key Features

• All-copper coil construction for efficient heat transfer and corrosion resistance
• Supports 3.5-5 ton AC and 3.5 ton heat pump configurations
• 14 SEER efficiency rating
• R410A refrigerant compatible
• Uncased design for flexible cabinet integration in mobile home air handlers
• Compact footprint sized for mobile home HVAC cabinet dimensions

Compatibility

Designed as an OEM-style replacement uncased evaporator coil for mobile home and manufactured housing split-system HVAC applications using R410A refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for handling R410A refrigerant. De-energize the system and recover all refrigerant before removing the existing coil. Verify cabinet dimensions and refrigerant line connections before mounting the uncased coil to ensure a proper seal and airflow path. Follow local mechanical codes and manufacturer guidelines for refrigerant line sizing and drain pan connection.

Technical Specifications

• Coil Material: Copper
• Coil Type: Uncased Evaporator
• Cooling Capacity: 3.5-5 Ton AC
• Heat Pump Capacity: 3.5 Ton
• SEER Rating: 14 SEER
• Refrigerant: R410A
• Width: 17.75 inches
• Height: 19.5 inches
• Depth: 19.625 inches
• Application: Mobile Home / Manufactured Housing
• Category: Air Conditioning Coils

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: cm59a4g-177l-000
