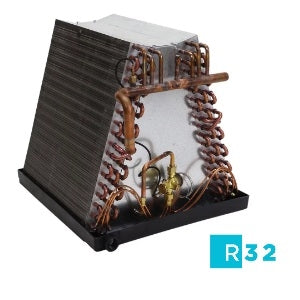

ASPEN CM48E3D-177L-065 Uncased 3-4 ton Evaporator Coil, 17.75 Inch Wide

Product Description

The ASPEN CM48E3D-177L-065 is an uncased evaporator coil designed specifically for downflow applications. This model is commonly used with manufactured home furnaces. It has a cooling capacity ranging from three and a half to four tons and measures seventeen point seventy-five inches in width.

• Features left-hand refrigerant and plumbing connections with a downturn suction line.
• Includes downflow plates and a specially designed manufactured housing drain hose.
• Equipped with a heavy-duty polypropylene drain pan.

Product Highlights

This evaporator coil is constructed using rifled copper tubing and enhanced aluminum fins. It undergoes immersion testing at five hundred psi and is nitrogen-pressurized to ensure reliability and system integrity. It is ETL listed for use with R-32 refrigerant when paired with the appropriate metering device.

Product Information

Standard Information

• Application: For Use with Manufactured Home Furnaces
• Air Flow Direction: Downflow

Technical Specifications

• Width: Seventeen point seventy-five inches
• Cooling Capacity: Three point five to four ton
• Refrigerant: R-32
• Liquid Line Size (OD): Three eighths inch
• Suction Line Size (OD): Seven eighths inch
• Drain Connection: Single Left-Hand Three fourths FPT
