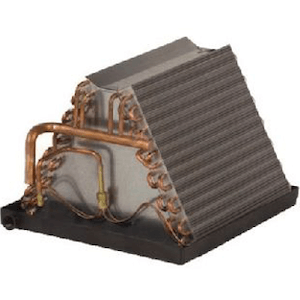

Aspen cm36a3g-177l-000 Uncased Mobile Home Coil 2.5-3 Ton

Product Description

The ASPEN cm36a3g-177l-000 is a copper uncased evaporator coil rated for 2.5 to 3 ton cooling capacity at 14 SEER efficiency. Designed specifically for mobile and manufactured home air conditioning systems, this coil operates with R-410A refrigerant and features a copper tube and fin construction. At 17.75 inches wide, 17.5 inches high, and 19.625 inches deep, it fits the compact air handler cabinets common in HUD-code manufactured housing. Licensed HVAC technicians install this coil as part of a split-system AC installation or replacement in mobile home applications.

This coil is intended for mobile and manufactured home HVAC systems where space constraints and specific cabinet dimensions dictate a purpose-built evaporator coil. The uncased design allows it to drop into existing air handler enclosures that provide their own cabinet and seal. Typical installations involve pairing this coil with a compatible mobile-home air handler and a matched condensing unit rated for R-410A at 14 SEER or better. It is suited for residential cooling applications in single-section and multi-section manufactured homes.

Key Features

• Copper tube construction for reliable heat transfer and corrosion resistance
• Rated for 2.5 to 3 ton cooling capacity at 14 SEER
• R-410A refrigerant compatible — no chlorine, reduced environmental impact versus R-22 systems
• Uncased design fits into existing mobile home air handler cabinets
• Compact footprint engineered to meet manufactured housing dimensional requirements

Compatibility

Designed as an OEM-style replacement evaporator coil for mobile and manufactured home split-system air conditioning applications using R-410A refrigerant with a 2.5 to 3 ton condensing unit rated at 14 SEER.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Recover all refrigerant before opening the system and de-energize the air handler at the disconnect before handling the coil. Verify cabinet dimensions against the coil footprint prior to installation, and ensure all connections are leak-tested after reassembly. Follow local mechanical codes and manufacturer guidelines for brazing, refrigerant charge, and drain pan configuration.

Technical Specifications

• Cooling Capacity: 2.5-3 Ton
• SEER Rating: 14 SEER
• Refrigerant: R-410A
• Coil Material: Copper
• Configuration: Uncased
• Width: 17.75 inches
• Height: 17.5 inches
• Depth: 19.625 inches
• Application: Mobile Home / Manufactured Home

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: cm36a3g-177l-000
