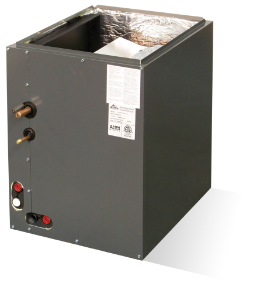

Aspen CE36A3G-175R-122 cased evaporator coil multi-position 3 ton 17.5 inch wide

Product Description

The Aspen CE36A3G-175R-122 is a cased evaporator coil designed for multi-position installation. This unit accommodates a nominal capacity of three tons and has dimensions of seventeen point five inches in width and twenty-three inches in height. It is compatible with refrigerants R-22 and R-410A, featuring a check flowrator for effective refrigerant control. The unit includes dual condensate drains and right-hand connections for ease of installation.

• Multi-position installation suitable for various HVAC setups
• Rifled copper tubing with enhanced aluminum fins for efficient heat transfer
• Ten-year limited warranty included for peace of mind

Product Highlights

This evaporator coil is built to work with different HVAC systems and has a reliable construction.

Product Information

Standard Information

• Manufacturer:Aspen Manufacturing
• MPN:CE36A3G-175R-122

Technical Specifications

• Width:17.5 inches
• Height:23 inches
• Liquid Line Size:3/8 inches
• Suction Line Size:3/4 inches
• Coil Configuration:Cased Multi-position
• Nominal Capacity:1.5 - 3 tons
• Refrigerant Type:R-22, R-410A
• Tubing/Fin Construction:Rifled copper tubing, enhanced aluminum fins
• Expansion Device - Refrigerant Control:Check Flowrator
