Aspen CC36D3D-175L-212 3 Ton Upflow Cased A-Coil 1200 CFM (24 in H x 17-1/2 in W x 21-1/2 in D) Replacement 222605

Product Description

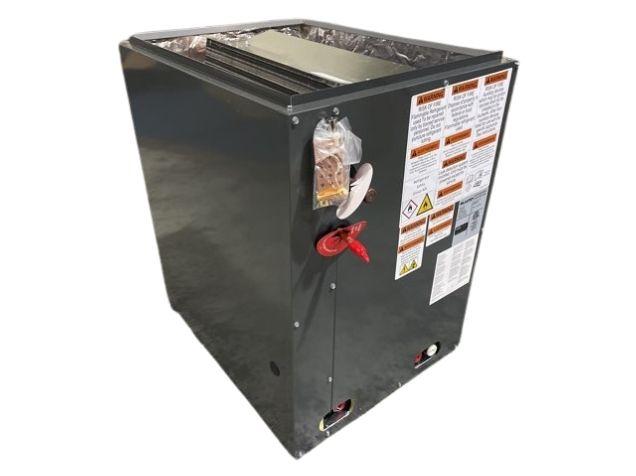

Aspen CC36D3D-175L-212 is a 3 ton upflow cased A-coil for air conditioning and heat pump applications, providing 1200 CFM. The coil uses a TXV metering device and is configured for R32 (A2L) refrigerant with sweat connections sized 3/8 in x 3/4 in. The unit features a plastic drain pan, measures 24 in H x 17-1/2 in W x 21-1/2 in D, and is paired with an R32 refrigerant detection system kit.

• 3 ton capacity, upflow cased A-coil rated for 1200 CFM and residential/commercial split systems
• TXV metering device; compatible with R32 (A2L) refrigerant; sweat connections 3/8 in x 3/4 in
• Dimensions 24 in H x 17-1/2 in W x 21-1/2 in D; weight 59 lbs; plastic drain pan; requires separate downflow conversion kit (not included)

Product Highlights

3 ton upflow A-coil, 1200 CFM, TXV metering, R32 (A2L) detection kit paired

Product Information

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: CC36D3D-175L-212

Technical Specifications

• Brand: Aspen
• MPN: CC36D3D-175L-212
• Manufacturer Item Number: CC36D3D-175L-212/A2L3SA
• Alternate Part Number: 222605, 222607
• Capacity (Ton): 3
• Airflow: Upflow
• CFM: 1200
• Metering Device: TXV
• Connection Type: Sweat
• Connection Size: 3/8 in x 3/4 in
• Refrigerant: R32 (A2L)
• Drain Pan: Plastic
• Dimensions: 24 in H x 17-1/2 in W x 21-1/2 in D
• Weight: 59 lbs

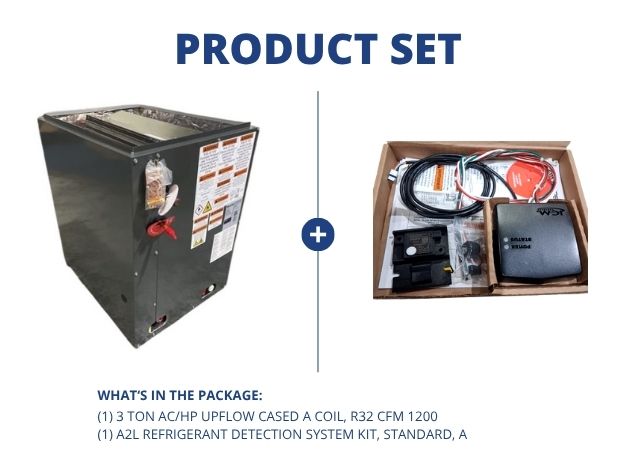

• Paired Kit: Refrigerant Detection System Kit (Standard) - includes mitigation board, field low-voltage wiring, sensor cable, sensor + clip, stickers, instructions, anti-strain clip, zip ties; compatible with 16"-23" width drain pans
• SCL Number: M001085
