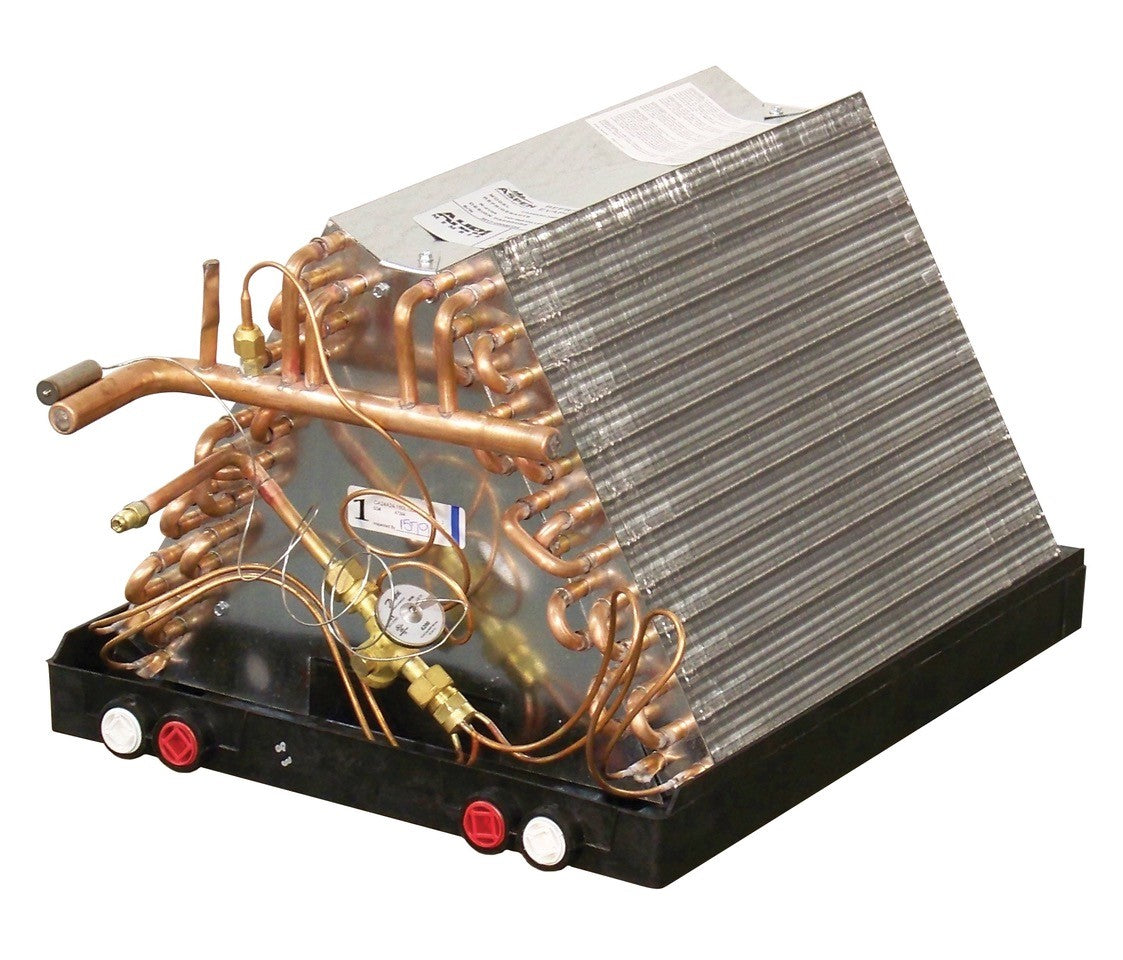

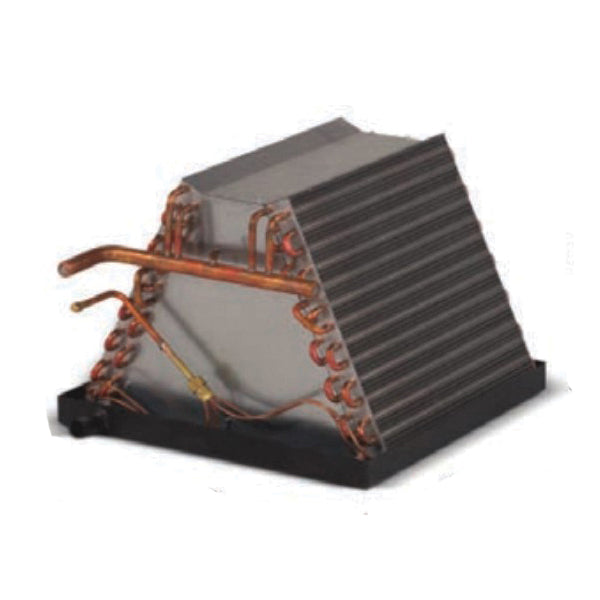

ASPEN CA60A3M-230R-065 Uncased 3.5-5 ton Evaporator Coil 23 Inch Wide

Product Description

The ASPEN CA60A3M-230R-065 is an uncased evaporator coil built for optimal performance in both upflow and downflow applications. It operates effectively with R-32 refrigerant using the appropriate metering device. This evaporator coil meets AHRI certification standards across all brands of air conditioning and heat pump systems.

• Designed for 3.5-5 ton systems.
• Offers left or right-hand refrigerant and plumbing connections.
• Includes heavy-duty plastic drain pans on most models.

Product Highlights

This evaporator coil is constructed with rifled copper tubing and enhanced aluminum fins for improved heat transfer. It undergoes immersion testing at 500 psi and is nitrogen-pressurized to ensure leak-proof quality.

Product Information

Standard Information

• Application: Upflow/Downflow
• Tonnage: 3.5-5 ton

Technical Specifications

• Width: 23 inches
• Height: 25.5 inches
• Refrigerant: R-32
• Liquid Line: 3/8 ODS
• Suction Line: 3/4 ODS on 1-1/2 - 3 ton and 7/8 ODS on 3-1/2 - 5 ton
