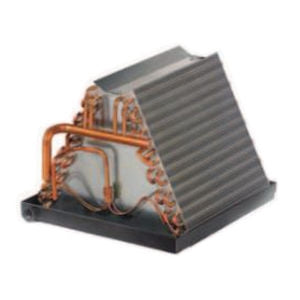

Aspen CA36A34-160R-003 Uncased Evaporator Coil – 3 Ton 16 Inch Wide

Product Description

The Aspen CA36A34-160R-003 is an uncased evaporator coil designed for upflow and downflow configurations. It has a nominal capacity of three tons and measures sixteen inches in width and seventeen and a half inches in height. This evaporator coil is compatible with R-410A refrigerant and includes right hand connections for easy installation.

• Nominal capacity of three tons.
• Compatible with R-410A refrigerant.
• Designed for both upflow and downflow applications.

Product Highlights

This product features rifled copper tubing and enhanced aluminum fins for improved heat exchange efficiency. The coil is immersion-tested for durability and can handle various refrigerant and plumbing connections.

Product Information

Standard Information

• Manufacturer: Aspen Manufacturing
• Model Number: CA36A34-160R-003

Technical Specifications

• Width: 16 inches
• Height: 17.5 inches
• Nominal Capacity: 3 tons
• Refrigerant Type: R-410A
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Coil Configuration: Uncased Upflow/Downflow
• Tubing/Fin Construction: Rifled copper tubing, enhanced aluminum fins
• Expansion Device - Refrigerant Control: Thermal Expansion Valve - TXV
