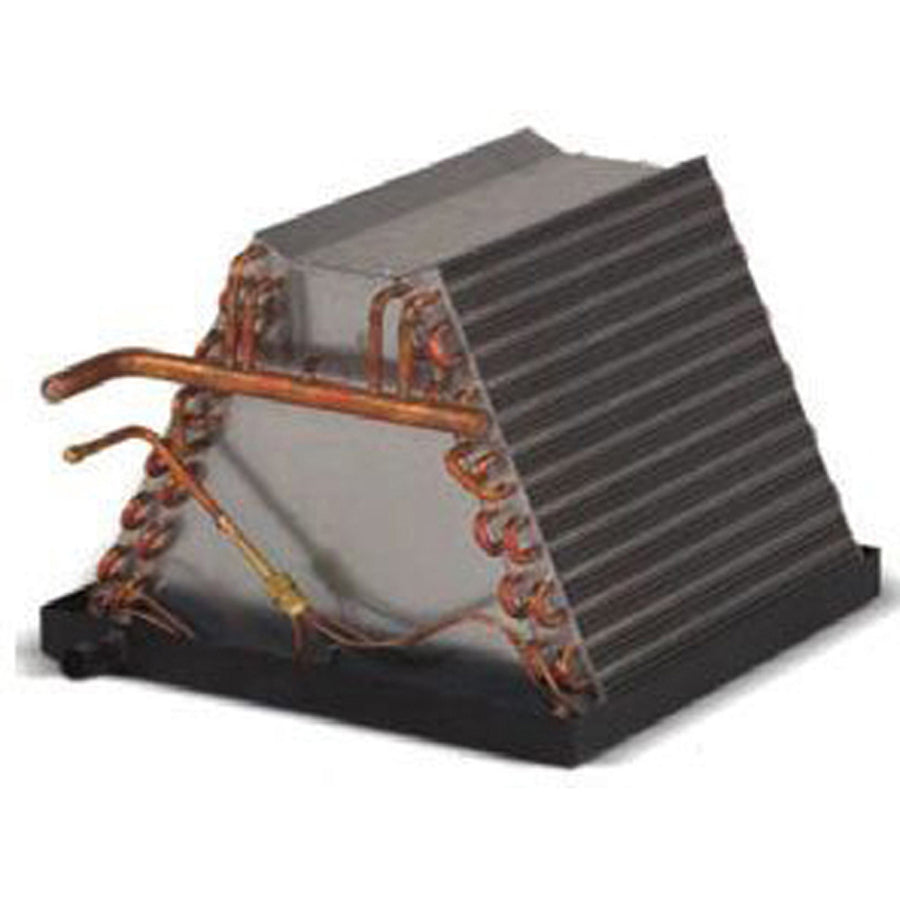

Aspen CA30A3G-130R-003 Uncased Evaporator Coil 30000 Btu/h

Product Description

The ASPEN CA30A3G-130R-003 is an uncased evaporator coil rated at 30000 BTU/h, designed for use in residential and light-commercial split-system air conditioners and heat pumps. The coil features rifled copper tubing and enhanced aluminum fins for efficient heat transfer across a 3-row coil circuit. It is compatible with R-410A refrigerant and ships nitrogen-pressurized and sealed after immersion testing at 500 psi. Measuring 13 inches wide, 15.5 inches tall, and 19.375 inches deep, this coil fits inside a wide range of existing air handler cabinets without requiring a factory casing.

This coil is suited for upflow and downflow installations in forced-air systems. Upflow orientation requires no field modification. Downflow applications require a plate kit, which is included. The externally mounted flow rater body includes a Schrader valve for hiss-testing during installation. Left- or right-hand refrigerant and plumbing connections allow flexible positioning in the cabinet. Liquid line connection is 3/8 inch ODS and suction line is 3/4 inch ODS for 1.5- to 3-ton applications. HVAC technicians installing this coil in new or replacement applications will find it AHRI certifiable with all brands of air conditioner and heat pump systems.

Key Features

• Rifled copper tubing and enhanced aluminum fins for efficient heat transfer
• 3-row coil design rated at 30000 BTU/h for 1.5-2.5 ton system applications
• Immersion-tested at 500 psi, then nitrogen-pressurized and sealed for leak integrity
• Externally mounted flow rater body with Schrader valve for hiss-testing
• Heavy-duty polypropylene drain pan included
• ETL listed for use with R-22 and R-410A when proper metering device is installed
• Made in the USA and AHRI certified

Compatibility

AHRI certifiable with all brands of air conditioner and heat pump systems. ETL listed for use with R-22 and R-410A refrigerants when the proper metering device is used.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler and recover refrigerant per EPA Section 608 regulations before beginning coil replacement. For downflow applications, install the included plate kit before mounting. Verify refrigerant line sizing and metering device selection match the system requirements before commissioning.

Technical Specifications

• Capacity: 30000 BTU/h
• Nominal Tonnage: 1.5-2.5 tons
• Refrigerant: R-410A (ETL listed for R-22 and R-410A)
• Coil Rows: 3
• Fin Material: Enhanced aluminum
• Tubing Material: Rifled copper
• Casing: Uncased
• Orientation: Upflow / Downflow
• Width: 13 inches
• Height: 15.5 inches
• Depth: 19.375 inches
• Liquid Line Connection: 3/8 inch ODS
• Suction Line Connection: 3/4 inch ODS (1.5-3 ton)
• Drain Pan Material: Heavy-duty polypropylene
• Test Pressure: 500 psi
• Weight: 31 pounds
• Certifications: AHRI Certified, ETL Listed
• Country of Origin: USA

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: CA30A3G-130R-003
