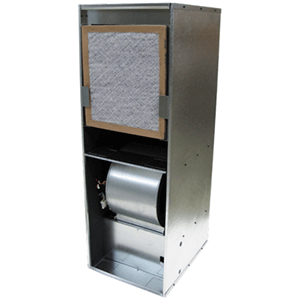

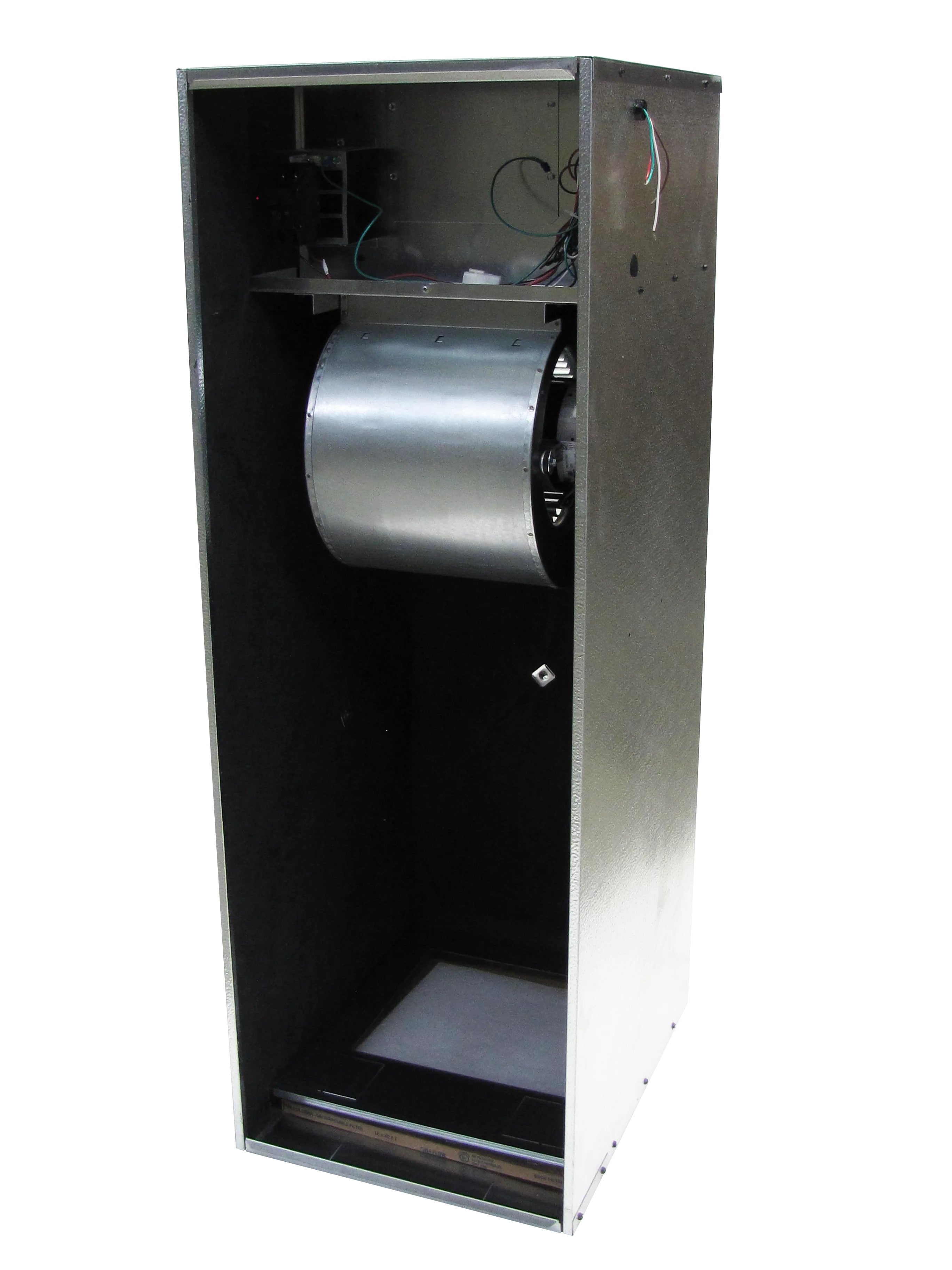

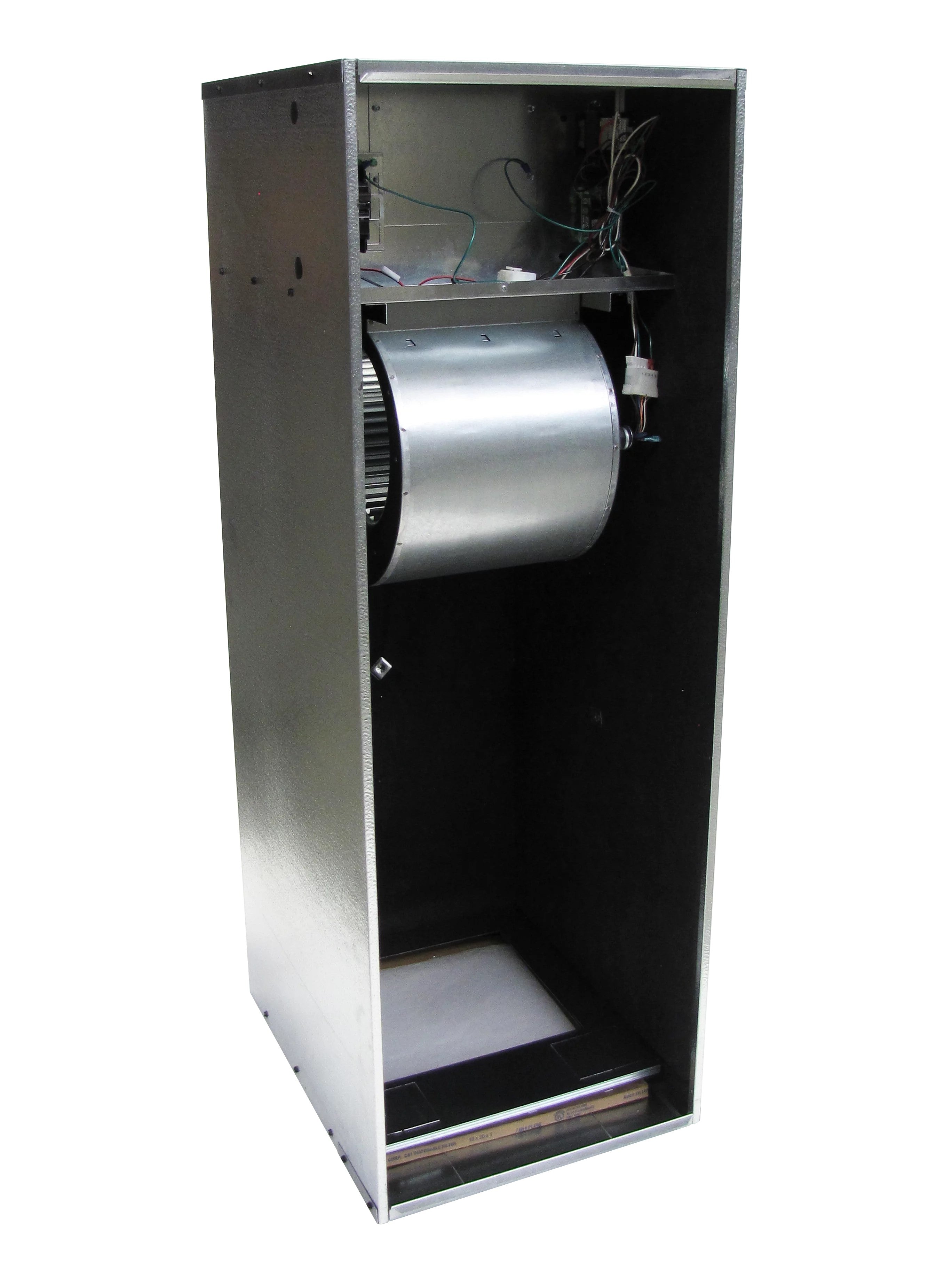

Aspen AED-S-004+FCLS10 MH Elec Furnace 10 kW

Product Description

The ASPEN AED-S-004+FCLS10 is designed for the manufactured home market with flexibility in mind. This wall/closet downflow manufactured home air handler is suitable for indoor use. It features a 10 kW heat output at 240V and a CFM rating of 710-1310. The unit operates at 208-240/1/60 voltage and has a vertical downflow configuration.

• Convertible one-piece cabinet design for flexible airflow orientation.

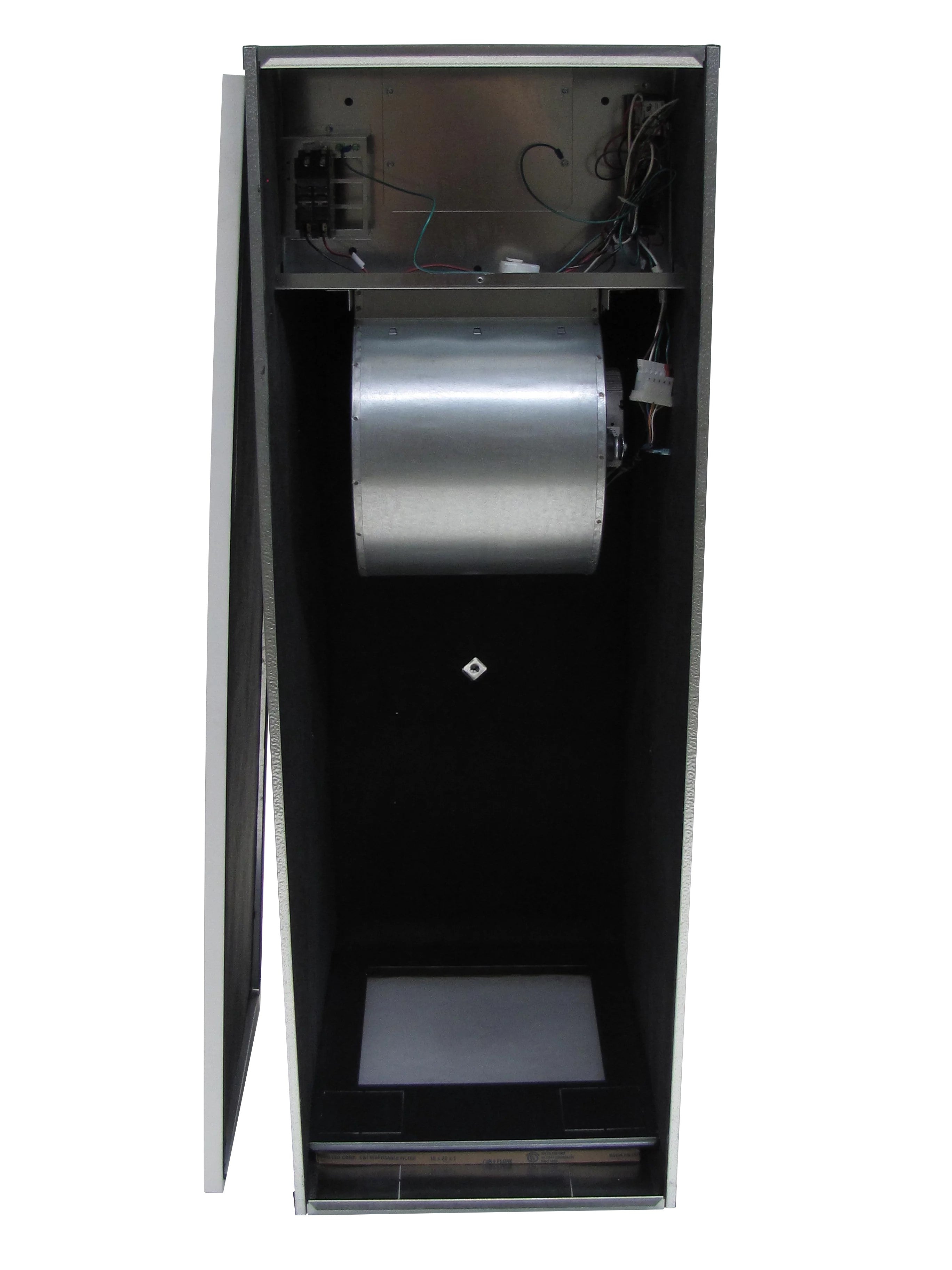

• Features a rail-mounted blower assembly for easy service.
• Electrical access available from both sides of the cabinet.

Product Highlights

Designed for manufactured homes, this electric furnace offers a convertible cabinet, easy service access, and enhanced wiring interface.

Product Information

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: AED-S-004+FCLS10

Technical Specifications

• Brand: Aspen Manufacturing
• Application: Wall/Closet Downflow Manufactured Home Air Handler Indoor
• Tonnage: 1.5 - 3
• Heat kW @ 240V: 10 kW
• CFM Rating: 710-1310
• Voltage Data (Volts-Phase-Hz): 208-240/1/60
• Minimum Circuit Amps @ 240V: 54.5
• Max Breaker or Fuse size: 60
• Airflow Stages: 1 Stage
• Motor: 1/2 hp
• Phase: 1 Phase
• Configuration: Vertical Downflow
• Model: AED
• Fan Motor: Constant Torque ECM
