Aspen AED-L-004+FCLL20 MH Elec Furnace 20 kW

Product Description

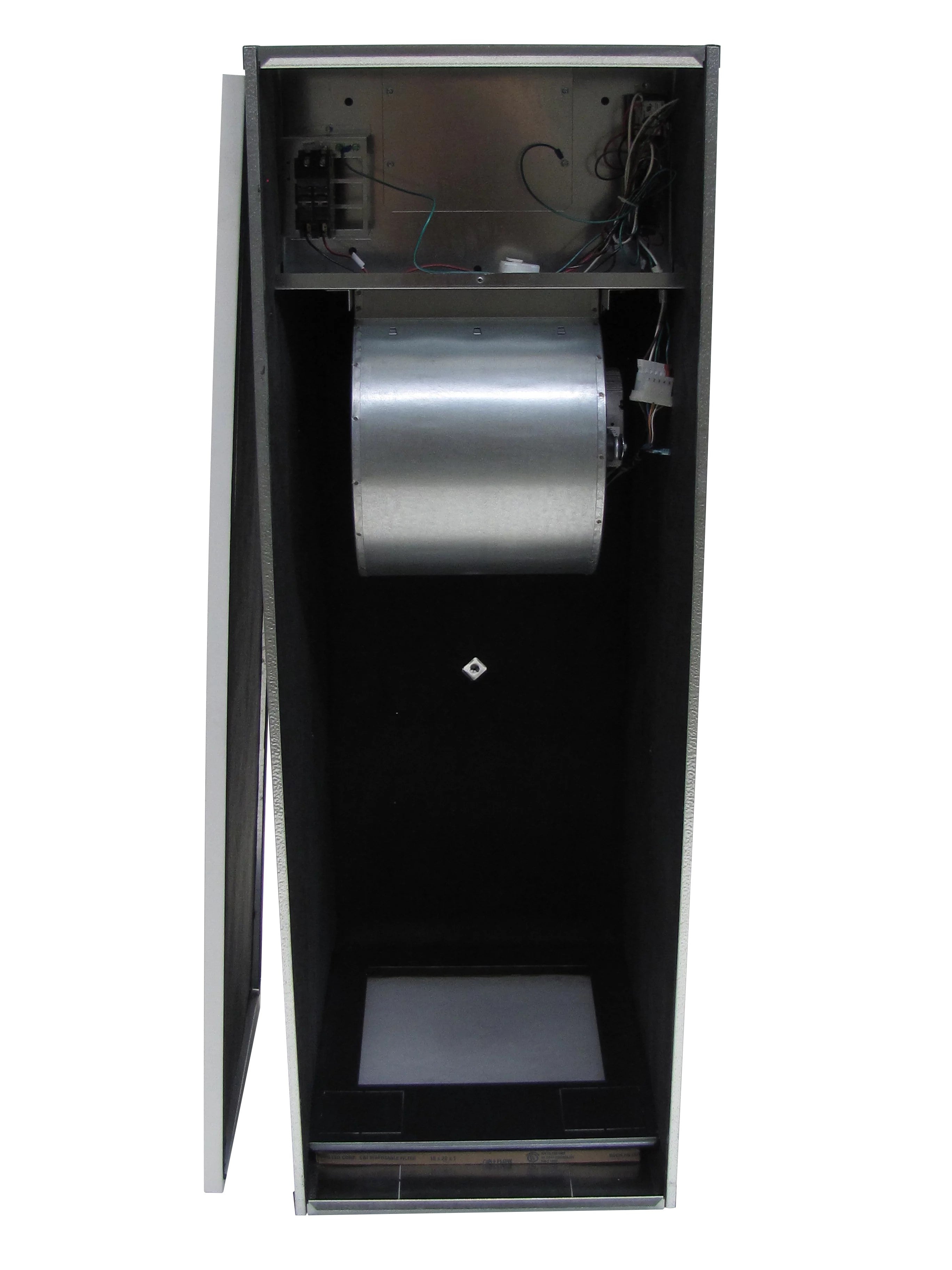

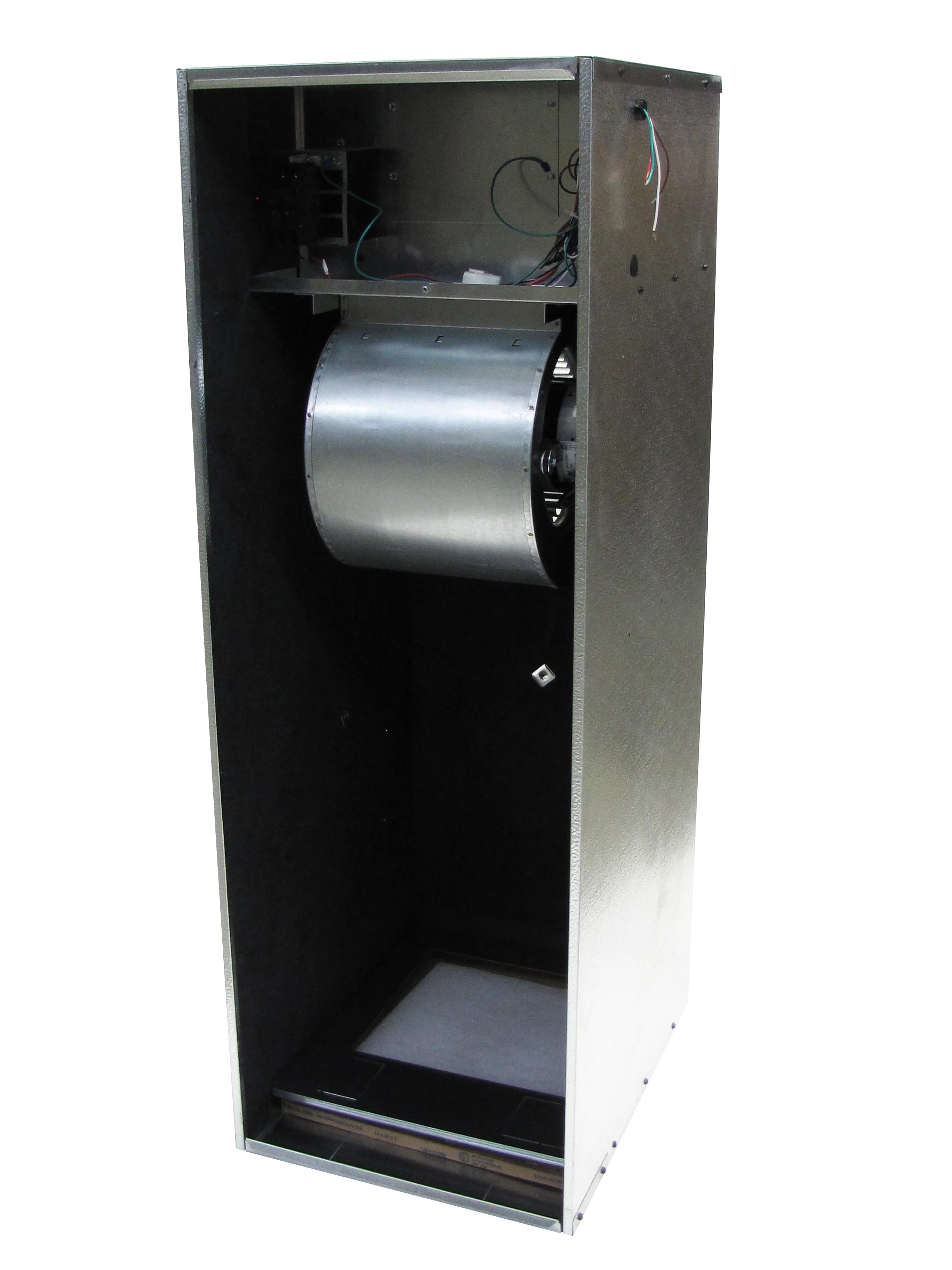

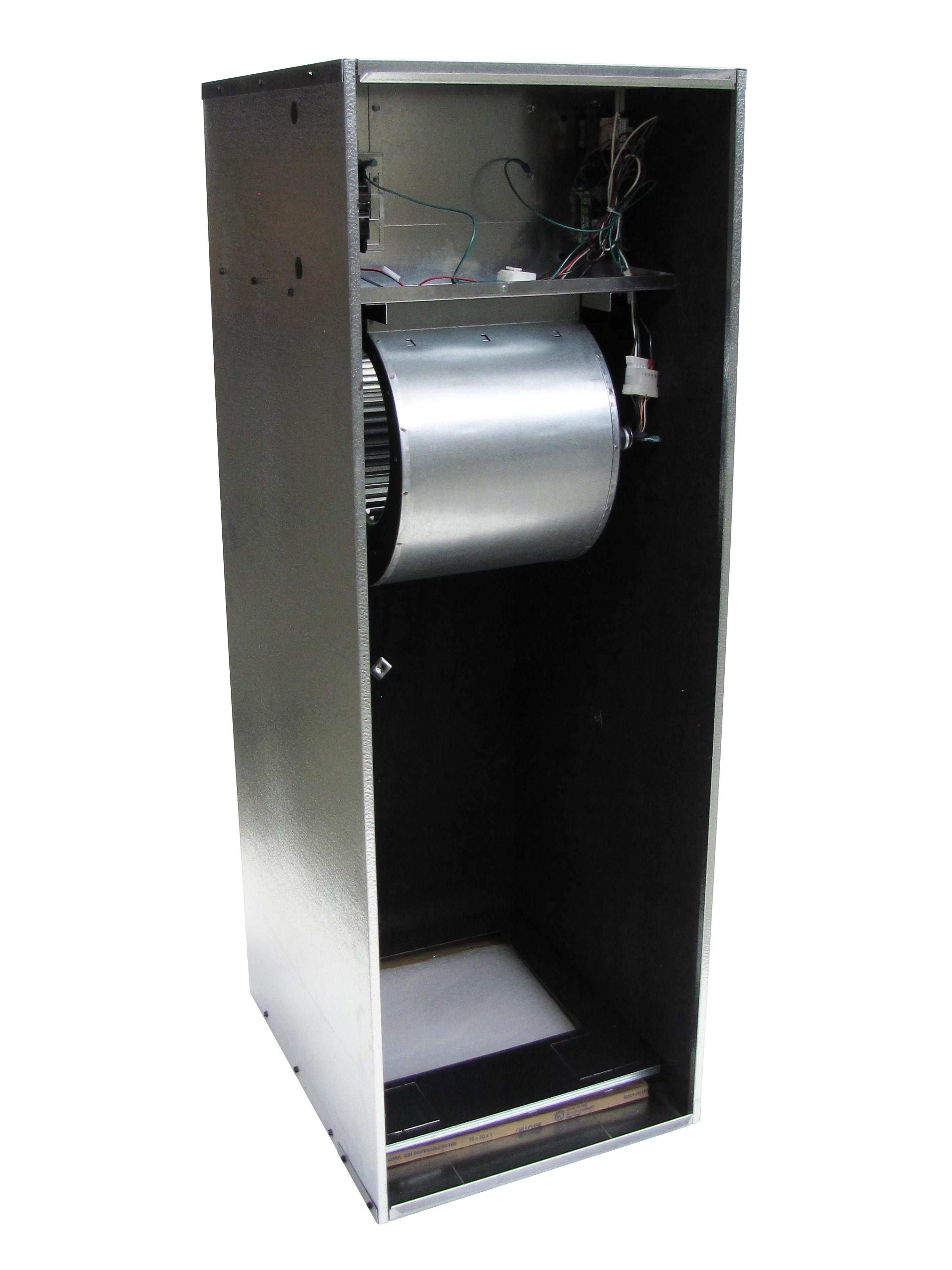

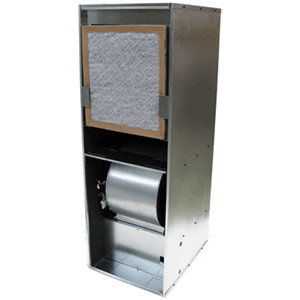

The ASPEN AED-L-004+FCLL20 is a wall/closet downflow manufactured home air handler designed for indoor use. It features a 20 kW heat output at 240V and a CFM rating of 1130-1850. Designed for the manufactured home market with flexibility in mind, it ships in a downflow configuration with front and top return.

• One piece cabinet reduces time and effort when field converting airflow orientation; convertible with correct door/accessories.
• Features a rail-mounted blower assembly easily removed for service.
• Electrical access is available from both sides of the cabinet.

Product Highlights

This air handler offers flexibility and ease of service, designed specifically for manufactured homes.

Product Information

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: AED-L-004+FCLL20

Technical Specifications

• Brand: Aspen Manufacturing
• Application: Wall/Closet Downflow Manufactured Home Air Handler Indoor
• Tonnage: 3 - 5
• Heat kW @ 240V: 20 kW
• CFM Rating: 1130-1850
• Voltage Data (Volts-Phase-Hz): 208-240/1/60
• Minimum Circuit Amps @ 240V: 59.5/50
• Max Breaker or Fuse size: 60/50
• Airflow Stages: 1 Stage
• Motor: 1 hp
• Phase: 1 Phase
• Configuration: Downflow
• Model: AED
• Type: Electric Furnace
• Fan Motor: Constant Torque ECM
