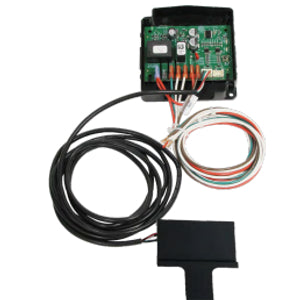

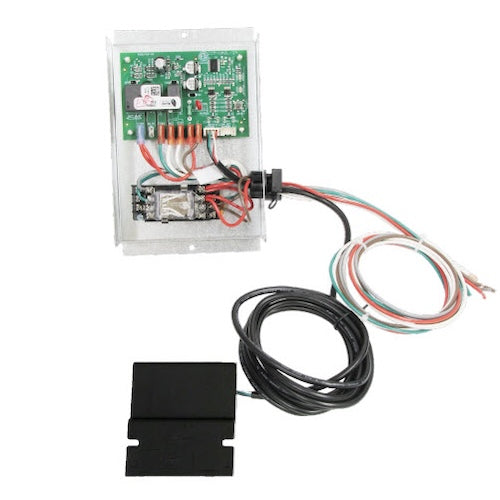

Aspen A2L4SA A2L Refrigerant Detection System RDS Kit R454B Standard A

Product Description

The Aspen A2L4SA is an A2L Refrigerant Detection System (RDS) Kit designed for use with R-454B refrigerant systems. Engineered to provide reliable refrigerant leak detection and compliance with applicable safety standards, this kit integrates with the HVAC system through the furnace's 24-volt connection. Upon refrigerant detection, the system is designed to shut down the condenser and activate the furnace blower to help mitigate refrigerant accumulation. The kit is compatible with Aspen coils and is certified to meet UL 60335-2-40 requirements.

Sensor Not Included: This kit does not include the refrigerant detection sensor. A compatible sensor must be purchased separately to complete the installation and operation of the refrigerant detection system.

• Designed for R-454B refrigerant systems

• Compatible with Aspen coils

• Certified to UL 60335-2-40 standards

• Connects through the HVAC system's 24V control circuit

• Shuts down the condenser upon refrigerant detection

• Activates the furnace blower during detection events

• Utilizes existing thermostat 24V wiring

• Optional relay support for controlling additional components

• Designed to minimize nuisance and false alarms

• Sensor sold separately

Product Highlights

This refrigerant detection system provides a flexible solution for A2L refrigerant applications and safety compliance. The kit is designed for straightforward integration with compatible HVAC systems while supporting required refrigerant mitigation functions. A compatible refrigerant sensor is required for operation and is not included with this kit.

Product Information

Standard Information

• Brand: Aspen

• MPN: A2L4SA

• Product Type: A2L Refrigerant Detection System Kit

Technical Specifications

• Model: A2L4SA

• Refrigerant Compatibility: R-454B

• System Type: Refrigerant Detection System (RDS)

• Configuration: Standard A

• Control Voltage: 24 VAC

• Certification: UL 60335-2-40

• Compatible Equipment: Aspen Coils

• Suitable For Use With: R-454B Refrigerant Detection Systems and 16 to 23 Inch Drain Pans

• Mitigation Action: Condenser Shutdown and Furnace Blower Activation

• Wiring Method: Existing Thermostat 24V Circuit

• Optional Features: Auxiliary Relay Control Capability

• Sensor Included: No
