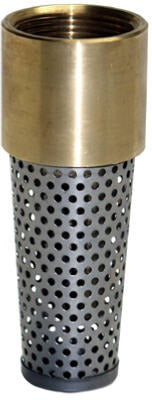

Ashland Water Group TFV-75NL Brass Foot Valve 0.75 in

Product Description

The ASHLAND WATER GROUP TFV-75NL is a 3/4-inch brass foot valve rated at 200 psi, designed to maintain prime in water supply lines by preventing backflow when a pump shuts down. The valve uses a spring-loaded poppet mechanism that holds a positive seal at all times, eliminating pressure loss and re-priming delays. Constructed from lead-free brass to comply with current lead-free legislation, this valve is suited for use in potable water systems. Licensed plumbers and water system installers are the primary trades that specify and install this component.

The TFV-75NL is intended for installation at the inlet end of a suction line, submerged in a water source such as a well, cistern, sump, or storage tank. It holds water in the suction pipe when the pump cycles off, keeping the pump primed and ready for the next start cycle. The 3/4-inch connection size fits standard residential and light commercial pump installations where suction lift applications are common.

Key Features

• Spring-loaded poppet design ensures positive sealing every cycle
• 200 psi pressure rating for demanding water supply applications
• Lead-free brass construction meets current lead-free compliance laws for potable water
• 3/4-inch connection size fits standard residential and light commercial suction lines
• Maintains pump prime by preventing backflow when pump is off

Compatibility

Designed as an OEM-style replacement foot valve for 3/4-inch suction line installations in residential and light commercial water pump systems.

Installation Notes

Installation is performed by licensed plumbers following applicable local plumbing codes and IPC guidelines. Shut off and de-energize the pump before any work on the suction line. The valve must be fully submerged at all times during operation to function correctly. Inspect the strainer screen and poppet seat during installation to confirm no debris is present before placing the valve into service.

Technical Specifications

• Connection Size: 0.75 inches
• Pressure Rating: 200 psi
• Material: Brass (Lead Free)
• Valve Type: Spring-Loaded Poppet Foot Valve
• Weight: 2.56 pounds
• Compliance: Lead-Free Laws

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: TFV-75NL
