Ashland Water Group TC10NL Brass Tank Tee 10x1

Product Description

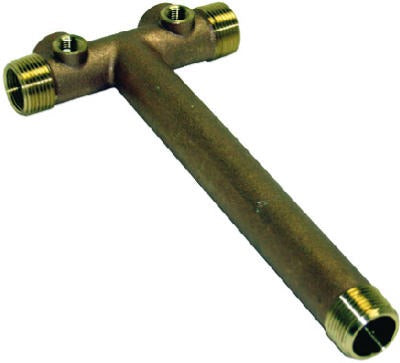

The ASHLAND WATER GROUP TC10NL is a brass tank tee designed for use in pressure tank plumbing assemblies. Measuring 10 inches in overall length with a 1-inch connection size, this fitting bridges the pump supply line to the pressure tank and provides four tapping holes for installing gauges, pressure switches, snifter valves, and relief valves. The lead-free brass construction meets current lead-free compliance standards, making it suitable for potable water systems. Licensed plumbers and waterworks contractors specify this fitting when setting up or replacing pressure tank connections in residential and light commercial pump systems.

The TC10NL is used in well water systems where a central connection point is needed between the pump, pressure tank, and distribution piping. The four tapping holes allow simultaneous mounting of all required control and safety components at a single location, reducing the need for additional fittings and keeping the assembly compact. This fitting is appropriate for residential pressure tank installations and light commercial pump skid assemblies where lead-free compliance is required.

Key Features

• Four tapping holes accommodate pressure gauges, switches, snifter valves, and relief valves simultaneously
• Lead-free brass construction complies with applicable lead-free plumbing laws for potable water service
• 10-inch length with 1-inch connection size for standard pressure tank installations
• Single fitting consolidates multiple accessory mounting points, reducing overall fitting count
• Solid brass body provides corrosion resistance in water system applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial well water pressure tank systems requiring a 1-inch tank tee with multiple accessory tapping points.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off and bleed down the pressure tank system completely before removing any existing fittings or making new connections. Apply appropriate thread sealant or PTFE tape to all threaded connections and verify all tapped ports are properly plugged or fitted before restoring system pressure. Inspect all connections for leaks at initial system pressurization.

Technical Specifications

• Material: Brass (Lead-Free)
• Length: 10 inches
• Connection Size: 1 inch
• Tapping Holes: 4
• Weight: 5.81 pounds
• Compliance: Lead-Free
• Unit of Measure: EA
• Package Quantity: 3

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: TC10NL
