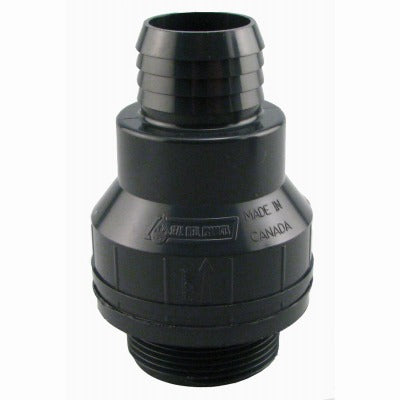

Ashland Water Group SPC-250 Inline Sump Check Valve

Product Description

The ASHLAND WATER GROUP SPC-250 is a plastic inline sump check valve designed to prevent backflow in sump pump discharge lines. Built from durable thermoplastic, it threads directly onto a 1-1/2 inch male pipe thread (MPT) discharge connection. The valve allows two installation methods: for permanent installations, a 1-1/2 inch PVC slip coupler can be PVC-welded directly to the valve body; for temporary installations, a flexible discharge hose can be clamped to the 1-1/4 inch barbed outlet. Plumbers and pump installers use this valve in residential and light commercial sump pit systems to maintain prime and stop reverse water flow when the pump shuts off.

The SPC-250 fits into sump pump discharge configurations where a reliable inline check valve is needed at the pump outlet. It is suited for residential basement sump systems and crawl space drainage setups. The thermoplastic construction resists corrosion in wet environments, making it appropriate for continuous submersion-adjacent service. Both permanent PVC-welded piping runs and temporary hose-based installations are supported by the dual connection design on this single valve body.

Key Features

• 1-1/2 inch MPT inlet connects directly to standard sump pump discharge ports
• Thermoplastic construction resists corrosion and chemical degradation
• Accepts 1-1/2 inch PVC slip coupler for permanent PVC-welded installations
• 1-1/4 inch barbed outlet accommodates flexible discharge hose with hose clamp for temporary setups
• Inline design prevents backflow when pump cycles off

Compatibility

Designed as an OEM-style replacement or new-installation check valve for residential and light commercial sump pump discharge systems using 1-1/2 inch MPT discharge connections.

Installation Notes

Installation is performed by licensed plumbers or qualified pump technicians. Disconnect power to the sump pump at the circuit breaker before beginning any work on the discharge line. For permanent installations, follow solvent-weld procedures per IPC guidelines and allow full cure time before restoring power. For temporary hose connections, secure the hose clamp firmly to the 1-1/4 inch barb to prevent blow-off under pump pressure.

Technical Specifications

• Inlet Connection: 1-1/2 inches MPT (Male Pipe Thread)
• Permanent Connection Type: 1-1/2 inches PVC Slip Coupler (PVC weld)
• Temporary Connection Type: 1-1/4 inches barbed hose fitting
• Body Material: Thermoplastic
• Weight: 3.72 pounds
• Package Quantity: 20 per unit of measure

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: SPC-250
