Ashland Water Group PUP61DC 1/12 Hp Utility Pump 360 Gph

Product Description

The ASHLAND WATER GROUP PUP61DC is a lightweight 12-volt DC utility pump rated at 1/12 HP and capable of moving up to 360 gallons per hour. It runs on an air-cooled, high-torque motor with replaceable brushes, making field maintenance straightforward without returning the unit to a shop. Designed for manual operation, it handles common residential and light-commercial drain tasks including clearing clogged sinks and tubs, draining water heaters and storage tanks, and pulling standing water off flat surfaces. A floor drainer attachment lets the pump pick up water from flat surfaces down to approximately 1/8 inch depth.

This pump is suited for plumbers, HVAC technicians, and property maintenance crews who need a portable, low-voltage solution for water removal during service calls. It ships as a ready-to-deploy kit including a 6-foot garden hose, a 6-foot motor cord, the floor drainer attachment, and an impeller replacement kit. The 12V DC motor draws from a standard DC power source, keeping the unit viable in locations where 120V AC power is unavailable or unsafe. Manual operation means there are no float switches or automatic controls to troubleshoot on the job.

Key Features

• 1/12 HP air-cooled, high-torque DC motor with replaceable brushes for in-field serviceability
• Pumps up to 360 GPH for fast water transfer and drainage tasks
• 12-volt DC operation suitable for battery-powered or low-voltage DC supply situations
• Includes floor drainer accessory to remove standing water from flat surfaces down to approximately 1/8 inch depth

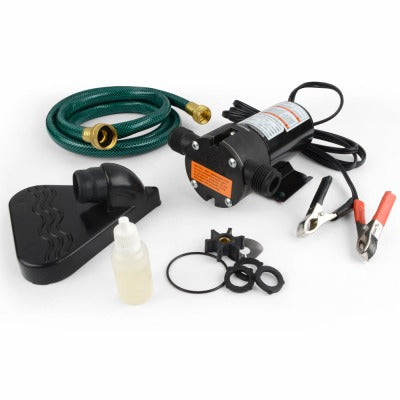

• Kit includes 6-foot garden hose, 6-foot motor cord, and impeller replacement kit
• Lightweight construction for easy transport between job sites

Compatibility

Designed as a general-purpose portable utility pump for residential and light-commercial water transfer and drainage applications.

Installation Notes

Installation and operation should be performed by a qualified plumber or service technician familiar with portable pump equipment. Ensure the DC power source is disconnected before connecting or disconnecting motor leads. Do not submerge the motor housing beyond the rated depth and never run the pump dry, as dry operation will damage the impeller and void the warranty. Verify that discharge hose connections are secure before starting the pump to prevent unintended water release in the work area.

Technical Specifications

• Motor Power: 1/12 HP
• Voltage: 12 volts DC
• Flow Rate: 360 GPH (maximum)
• Operation Type: Manual
• Motor Type: Air-cooled, high-torque with replaceable brushes
• Minimum Surface Water Depth: Approximately 1/8 inch (with floor drainer)
• Included Accessories: Floor drainer, 6-foot garden hose, 6-foot motor cord, impeller replacement kit
• Weight: 5.6 pounds
• Warranty: 1 year

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: PUP61DC
