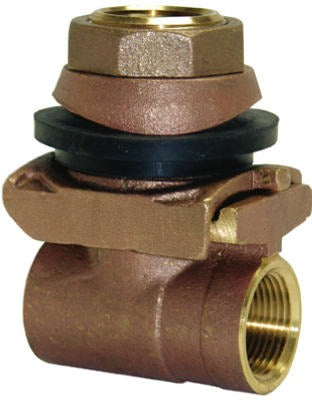

Ashland Water Group PA125NL Pitless Adapter 1-1/4 in Brass

Product Description

The ASHLAND WATER GROUP PA125NL is a 1-1/4 inch brass pitless adapter designed for submersible well installations. It provides a watertight, sanitary connection through the well casing wall, allowing the drop pipe and pump assembly to be serviced from the surface without excavation. Rated at 150 psi, this adapter is built to handle the pressure demands of residential and light commercial well systems. Its lead-free construction ensures compliance with applicable lead-free drinking water laws, making it suitable for potable water applications where code compliance is required.

This pitless adapter is intended for use on submersible well systems up to 600 feet deep, covering the majority of residential and rural water supply installations. It is typically installed by licensed well drillers or plumbing contractors during new well construction or pump replacement service. The 1-1/4 inch connection size is a common configuration for residential submersible pump drop pipe assemblies.

Key Features

• Rated at 150 psi for reliable performance in deep well applications
• Compatible with submersible wells up to 600 feet deep
• Lead-free brass construction complies with lead-free drinking water laws
• 1-1/4 inch connection size suits standard residential drop pipe configurations
• Allows above-grade pump and drop pipe serviceability without casing excavation

Compatibility

Designed as an OEM-style replacement or new-installation pitless adapter for residential and light commercial submersible well systems using 1-1/4 inch drop pipe assemblies.

Installation Notes

Installation of a pitless adapter should be performed by a licensed well driller or plumbing contractor in accordance with local well construction codes and the applicable state drinking water regulations. Shut off all power to the submersible pump before handling the drop pipe or making any connections inside the well casing. Proper sanitary seal and torque on the casing wall fitting are critical to prevent surface water infiltration. Follow local IPC and state well code requirements for potable water installations.

Technical Specifications

• Connection Size: 1-1/4 inches
• Material: Brass
• Pressure Rating: 150 psi
• Maximum Well Depth: 600 feet
• Lead Free: Yes, complies with lead-free laws
• Weight: 17.55 pounds
• Package Quantity: 4 per package

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: PA125NL
