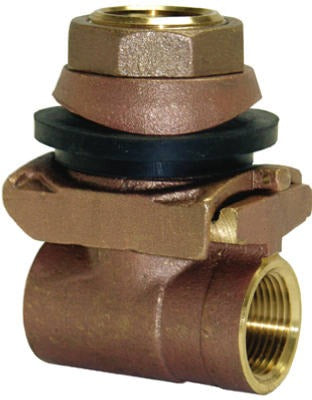

Ashland Water Group PA100NL Brass Pitless Adapter 1 Inch

Product Description

The ASHLAND WATER GROUP PA100NL is a 1-inch brass pitless adapter designed for submersible well installations. It provides a watertight, below-grade connection point where the well pipe passes through the well casing and transitions to the horizontal supply line leading to the building. Rated at 150 psi, this adapter is built to handle the pressure demands of residential and light commercial well systems. It complies with lead-free laws, making it suitable for potable water applications. Licensed well drillers and plumbers install this fitting as a standard component in drilled well completions.

This pitless adapter is suited for submersible well systems up to 600 feet in depth. It is commonly installed in residential drilled wells where a below-frost-line casing penetration is required to protect the water supply line from freezing. The 1-inch connection size accommodates typical submersible pump discharge pipe configurations used in residential well systems. Its brass construction provides corrosion resistance in the wet, soil-contact environment of a well casing installation.

Key Features

• Rated at 150 psi for reliable pressure performance in submersible well systems
• Compatible with submersible wells up to 600 feet deep
• 1-inch connection size fits standard residential submersible pump discharge piping
• Brass construction resists corrosion in continuous-contact wet environments
• Complies with lead-free laws for use in potable water systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch submersible well systems requiring a below-grade casing penetration in residential and light commercial drilled well applications.

Installation Notes

Installation of a pitless adapter is typically performed by a licensed well driller or plumber in accordance with local well construction codes and applicable plumbing codes such as the IPC. The well pump and any associated electrical supply must be fully de-energized before working on the well casing or drop pipe assembly. Use appropriate well tools for setting and pulling the adapter through the casing; do not force the connection, as brass fittings can be damaged by improper seating. Verify all connections are watertight and pressure-tested before restoring service.

Technical Specifications

• Connection Size: 1 inch
• Material: Brass
• Pressure Rating: 150 psi
• Maximum Well Depth: 600 feet
• Compliance: Lead-free
• Weight: 18 pounds
• Package Quantity: 6 per package

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: PA100NL
