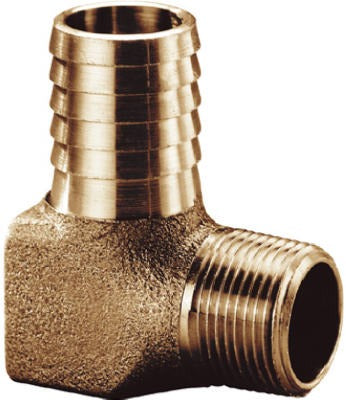

Ashland Water Group HE7501NL Brass Hydrant Elbow

Product Description

The ASHLAND WATER GROUP HE7501NL is a brass hydrant elbow designed for ground hydrant installation in residential and light commercial water supply systems. The fitting features a 0.75 inch NPT threaded end for direct installation into the hydrant body and a 1 inch barbed end for connection to plastic pipe. Manufactured to comply with lead-free laws, this elbow is appropriate for potable water applications. It is typically installed by licensed plumbers during ground hydrant setup or replacement service.

The HE7501NL is used in ground hydrant installations where a transition is needed between the hydrant inlet and a plastic supply line. The 0.75 inch NPT thread mates directly to standard ground hydrant inlet ports, while the 1 inch barbed end accepts common plastic irrigation or water supply tubing. This fitting is suited for residential yard hydrants, agricultural water posts, and light commercial outdoor water supply points.

Key Features

• 0.75 inch NPT threaded end for installation directly into the hydrant body
• 1 inch barbed end designed for connection to plastic pipe
• Brass construction for corrosion resistance and durability
• Complies with lead-free laws for use in potable water systems
• Sold in packages of 12 units (sold per each)

Compatibility

Designed as an OEM-style replacement elbow fitting for ground hydrant installations requiring a 0.75 inch NPT inlet and a 1 inch barbed outlet for plastic pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve line pressure before removing or installing any hydrant fittings. Apply thread sealant tape or compound to the NPT threads before threading into the hydrant body. Do not overtighten the barbed connection; secure the plastic pipe with an appropriate clamp rated for the service pressure.

Technical Specifications

• Material: Brass
• NPT Thread Size: 0.75 inches
• Barbed End Size: 1 inch
• Connection Type: NPT x Barb
• Compliance: Lead Free
• Package Quantity: 12 per package
• Weight: 5.45 pounds

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: HE7501NL
