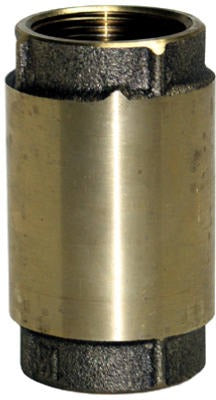

Ashland Water Group CV-100NL Brass Check Valve 1 in

Product Description

The ASHLAND WATER GROUP CV-100NL is a 1-inch brass check valve rated for 200 psi service. It delivers positive sealing action across both low- and high-pressure water supply applications. The lead-free brass construction meets current federal and state lead-free plumbing laws, making it code-compliant for potable water systems. Licensed plumbers and pipefitters install this valve where backflow prevention is required without the need for an active actuator or external power source. The spring- or swing-assisted check mechanism closes automatically when flow reverses, protecting pumps, water heaters, and distribution lines from backflow contamination.

This check valve is suited for residential and light commercial plumbing systems in 1-inch supply lines. Typical installations include domestic water service entries, booster pump discharge lines, water heater inlets, and irrigation supply connections. Its 200 psi pressure rating accommodates municipal supply pressures and standard booster pump outputs without derating. The compact brass body fits standard threaded pipe connections common in both new construction and retrofit plumbing work.

Key Features

• Rated to 200 psi for reliable performance in both low- and high-pressure systems
• Lead-free brass body complies with federal and state lead-free plumbing requirements for potable water
• Positive sealing action prevents backflow without external power or manual intervention
• 1-inch connection size fits standard threaded pipe in residential and commercial plumbing
• Sold in packages of 12 units, suited for contractor stock or multi-unit projects

Compatibility

Designed as an OEM-style replacement or new-install check valve for 1-inch threaded plumbing systems where a lead-free, 200 psi-rated backflow prevention device is required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure completely before removing or installing any check valve. Verify flow-direction arrows on the valve body are oriented correctly before making final connections. Use appropriate thread sealant rated for potable water on all threaded joints.

Technical Specifications

• Connection Size: 1 inch
• Material: Brass (Lead Free)
• Pressure Rating: 200 psi
• Weight: 10.45 pounds (per package of 12)
• Package Quantity: 12 units

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: CV-100NL
