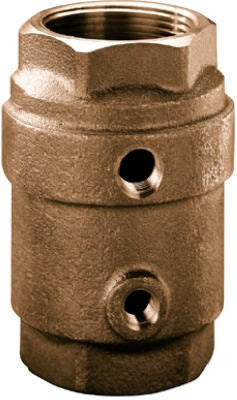

Ashland Water Group CCC-125NL Check Valve 1-1/4 in

Product Description

The ASHLAND WATER GROUP CCC-125NL is a 1-1/4 inch brass control center check valve rated for service up to 200 psi. It is designed for use in water well pressure systems, where it functions to prevent backflow between the pump and the pressure tank. The valve body includes a 1/8 inch tapping for a snifter valve and a 1/4 inch tapping for a pressure switch, consolidating key control connections into a single fitting. Compliant with lead-free laws, this check valve is suited for potable water applications. Licensed plumbers and well system contractors are the primary installers.

This valve is typically installed in residential and light commercial water well systems as part of the control center assembly. The integrated tappings allow for direct mounting of a snifter valve and pressure switch without additional fittings, simplifying the installation at the pump discharge or tank inlet. Its 200 psi pressure rating makes it appropriate for standard submersible and jet pump configurations found in domestic water supply systems.

Key Features

• Rated to 200 psi for reliable service in residential well pressure systems
• 1/8 inch tapping accommodates a snifter valve for tank air charging
• 1/4 inch tapping accepts a standard pressure switch for pump control
• Brass construction for durability in potable water service
• Complies with lead-free laws for drinking water applications
• 1-1/4 inch connection size fits common well system piping

Compatibility

Designed as an OEM-style replacement control center check valve for residential and light commercial water well pressure systems using 1-1/4 inch piping with standard snifter valve and pressure switch connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified well system contractor. Shut off power to the pump and relieve system pressure before removing or installing the valve. Ensure thread sealant used on all connections is rated for potable water service. Follow applicable local plumbing codes and IPC guidelines for check valve placement and pressure system assembly.

Technical Specifications

• Connection Size: 1-1/4 inches
• Pressure Rating: 200 psi
• Snifter Valve Tapping: 1/8 inches
• Pressure Switch Tapping: 1/4 inches
• Material: Brass
• Lead Free Compliance: Yes
• Weight: 14.65 pounds
• Package Quantity: 6 per unit of measure

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: CCC-125NL
