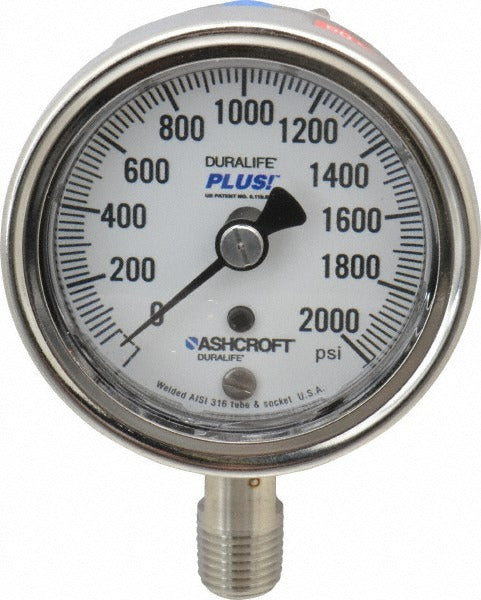

Ashcroft 94232XLL Pressure Gauge 0-2000 Psi 2.5in Dial

Product Description

The ASHCROFT 94232XLL is an industrial-grade analog pressure gauge built for demanding service environments. It features a 2.5-inch dial with a measurement range of 0 to 2000 psi and delivers 1% of scale accuracy. The case and wetted parts are stainless steel, making it suitable for applications where corrosion resistance is critical. The gauge uses a 316 stainless steel Bourdon tube and mounts from the lower position via a 0.25-inch MNPT connection. It ships dry with no liquid fill. Licensed HVAC technicians, plumbers, pipefitters, and industrial mechanics install this gauge in pressurized system monitoring applications.

The ASHCROFT 94232XLL is intended for industrial pressure monitoring in systems where media compatibility with stainless steel wetted parts is required. The dry, no-fill design suits applications where vibration-dampening fluid is not needed or where fluid contamination is a concern. Its lower-mount MNPT connection fits standard pipe thread ports, making it straightforward to install inline or on manifolds in HVAC, plumbing, or light industrial process piping. The polycarbonate lens provides impact resistance and clear dial readability in field conditions.

Key Features

• 0 to 2000 psi measurement range with 1% of scale accuracy
• 316 stainless steel Bourdon tube for corrosion-resistant pressure sensing
• 304 and 316 stainless steel case construction for durable, corrosion-resistant housing
• Stainless steel wetted parts throughout for broad media compatibility
• Analog dial with polycarbonate lens for clear field readability
• Dry gauge, no liquid fill — 0.25-inch lower-mount MNPT connection
• Listed to CRN, IP54, IP65/NEMA 4, PED, and RoHS standards

Compatibility

Designed as an OEM-style industrial pressure gauge for use in pressurized piping, HVAC, and process systems accepting a 0.25-inch MNPT lower-mount connection with stainless steel wetted parts rated to 2000 psi.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or HVAC technician. Depressurize and isolate the system fully before removing or installing any pressure gauge. Apply thread sealant appropriate for the system media to the MNPT threads per the fitting manufacturer instructions and applicable IPC or IFGC guidelines. Do not over-tighten the brass or stainless fittings; use a wrench on the gauge hex only, not the case body.
