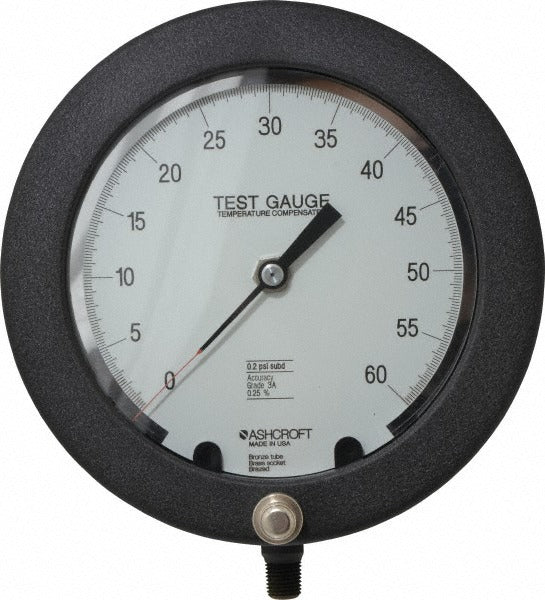

Ashcroft 92644 Pressure Gauge 0-60 Psi 6 Inch Dial Npt

Product Description

The ASHCROFT 92644 is an analog pressure gauge designed for accurate pressure measurement in mechanical, HVAC, plumbing, and industrial service applications. It features a 6-inch aluminum case dial with a glass lens, a bronze Bourdon tube sensing element, and a 1/4-inch NPT lower-mount connection. The gauge reads from 0 to 60 psi with an accuracy rating of 0.25 percent of scale, making it suitable for applications where reliable, repeatable readings are required. The large 6-inch dial face improves readability in low-visibility or high-traffic service environments. It is part of the ASHCROFT 1082 Series and carries CRN certification.

The ASHCROFT 92644 is well suited for use in hydronic heating systems, chilled water loops, compressed air lines, and general plumbing pressure monitoring. The lower-mount NPT connection allows direct installation into threaded pipe fittings, manifold blocks, or system tees. Licensed plumbers, HVAC technicians, and pipefitters typically install this gauge during new system commissioning or as a replacement on existing pressure monitoring points. The 0 to 60 psi range covers most residential and light commercial hydronic and water service pressure monitoring requirements.

Key Features

• 6-inch aluminum case dial for improved readability in field conditions
• 0 to 60 psi range with 0.25 percent of scale accuracy
• Bronze Bourdon tube sensing element for reliable pressure response
• 1/4-inch NPT lower-mount connection for direct pipe installation
• Glass lens for clear dial visibility and durability
• CRN certified and part of the ASHCROFT 1082 Series

Compatibility

Designed as an OEM-style replacement or new-installation pressure gauge for hydronic, plumbing, and mechanical systems requiring a 1/4-inch NPT lower-mount connection and a 0 to 60 psi measurement range.

Installation Notes

Installation is performed by a licensed plumber or HVAC technician. Shut off system pressure and depressurize the line fully before removing an existing gauge or installing this unit. Apply thread sealant or PTFE tape to the NPT threads per standard plumbing practice and applicable IPC or IFGC guidelines. Do not overtighten the threaded connection, as this can damage the gauge socket or case.
