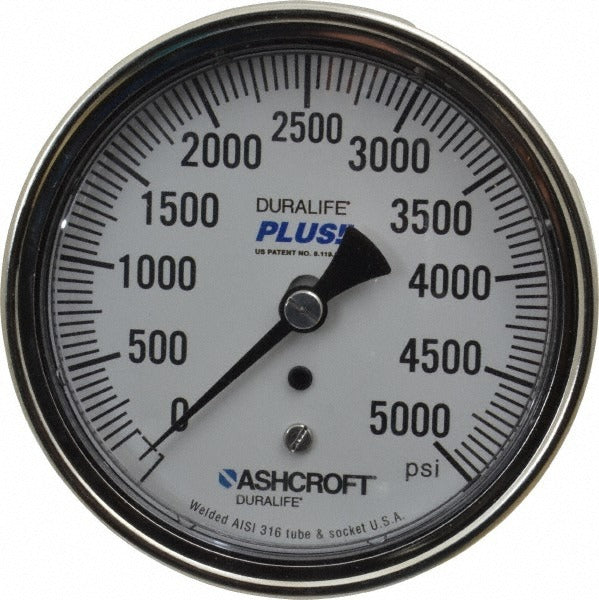

Ashcroft 83255XLL Pressure Gauge 3.5 in 0-5000 Psi Ss

Product Description

The ASHCROFT 83255XLL is an analog pressure gauge designed for accurate pressure measurement in demanding industrial, HVAC, plumbing, and process applications. It features a 3.5-inch dial for easy readout and a 1/4-inch center back mount connection for direct panel or pipe installation. With a stainless steel case and stainless steel wetted parts, this gauge resists corrosion and holds up in harsh service environments. It carries a 1% of scale accuracy rating across its 0 to 5000 psi range, making it well suited for high-pressure system monitoring where reliable readings matter. Licensed plumbers, HVAC technicians, and industrial service professionals are the typical installers.

The 83255XLL is appropriate for residential and commercial applications requiring a compact, durable pressure gauge on high-pressure lines or equipment. The center back mount configuration suits panel cutouts, manifold blocks, and equipment enclosures where a flush or low-profile installation is needed. Its non-liquid-filled, all-stainless construction makes it a practical choice for dry environments with moderate vibration or where fluid contamination of the gauge internals must be avoided.

Key Features

• 3.5-inch analog dial for clear, at-a-glance pressure readings
• 0 to 5000 psi pressure range for high-pressure system monitoring
• 1% of scale accuracy for reliable performance
• Stainless steel case and wetted parts for corrosion resistance
• 1/4-inch center back mount connection for panel or inline installation
• Non-liquid-filled design suits dry or low-vibration service environments

Compatibility

Designed as an OEM-style replacement or direct-install pressure gauge for high-pressure systems requiring a 3.5-inch dial, 1/4-inch center back mount, and a 0 to 5000 psi range in stainless steel construction.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or industrial mechanic. Isolate and depressurize the system fully before removing or installing any pressure gauge. Apply thread sealant appropriate for the service medium and pressure rating, and avoid overtightening the 1/4-inch connection to prevent case or fitting damage. Verify the system pressure range does not exceed the gauge maximum before returning the system to service.
