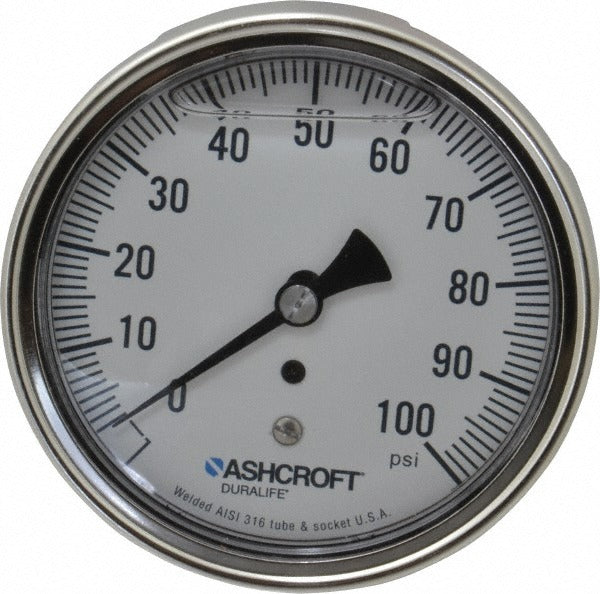

Ashcroft 83197 Pressure Gauge 0-100 Psi 3.5 in Dial Npt

Product Description

The ASHCROFT 83197 is a liquid-filled industrial pressure gauge designed for accurate pressure monitoring in demanding trade and industrial applications. It features a 3.5-inch analog dial with a 0 to 100 psi range and delivers 1 percent of scale accuracy. The 316 stainless steel Bourdon tube and 304/316 stainless steel case provide corrosion resistance in harsh environments. The liquid-filled design dampens needle vibration and protects internal components from pulsation and mechanical shock. A 1/4 inch NPT center back mount connection allows direct inline installation on pipework, manifolds, and equipment panels. Licensed HVAC techs, plumbers, and industrial service professionals install this gauge as a permanent system monitoring instrument.

This gauge suits residential and commercial plumbing, HVAC refrigerant circuits, compressed air systems, hydraulic lines, and general industrial process piping where continuous pressure indication is required. The center back mount configuration is well suited for panel-mount installations and equipment enclosures. The polycarbonate lens provides impact resistance and clear dial visibility in field conditions. Applications where vibration, moisture ingress, or corrosive media are present benefit from the liquid-filled stainless steel construction and IP54 and IP65/NEMA 4 environmental ratings.

Key Features

• Liquid-filled design dampens needle vibration and protects against pressure pulsation
• 316 stainless steel Bourdon tube for corrosion resistance in aggressive media
• 1 percent of scale accuracy across the full 0 to 100 psi range
• IP54 and IP65/NEMA 4 rated for wet and dusty environments
• Polycarbonate lens for impact resistance and clear readability
• Meets CRN, PED, and RoHS standards

Compatibility

Designed as an OEM-style replacement or new-install pressure gauge for industrial, commercial, and residential systems requiring a 1/4 inch NPT center back mount connection and a 0 to 100 psi analog indication range. Part of the ASHCROFT 1009 Series.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified industrial mechanic. Depressurize and isolate the system before removing any existing gauge or fitting. Apply appropriate thread sealant to the NPT connection per IPC and IFGC guidelines for the media being monitored. Do not overtighten the threaded connection, as stainless steel fittings are susceptible to galling.
