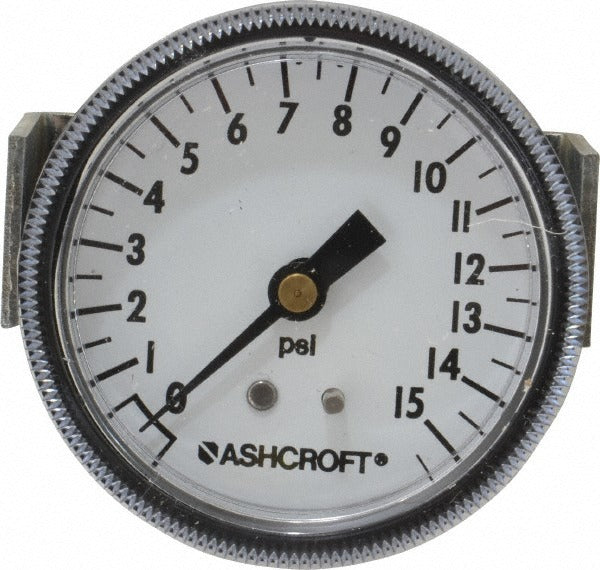

Ashcroft 662876001422 Pressure Gauge 0-15 Psi 2.5 in

Product Description

The ASHCROFT 662876001422 is a commercial-grade analog pressure gauge designed for monitoring system pressure in a wide range of industrial and mechanical applications. It features a 2.5-inch steel case dial with a 0 to 15 psi range and delivers 3-2-3 percent of scale accuracy across the full span. The bronze Bourdon tube provides reliable pressure sensing, while the polycarbonate lens protects the dial face from impact and contaminants. The 1/4-inch NPT center back mount configuration allows for direct panel or pipe installation. Licensed HVAC technicians, plumbers, and mechanical contractors are the typical installers of this gauge type.

This gauge is suited for residential and light commercial applications where low-range pressure monitoring is required, such as water supply lines, compressed air systems, heating system piping, and process equipment. The center back mount orientation makes it well suited for panel-mounted installations where a flush, straight-back connection is needed. The 1/4-inch NPT thread is a standard connection size found throughout plumbing and HVAC piping systems.

Key Features

• 0 to 15 psi pressure range for low-pressure system monitoring
• 3-2-3 percent of scale accuracy across the full dial range
• 2.5-inch analog dial for clear, at-a-glance pressure readings
• Bronze Bourdon tube construction for durable pressure sensing
• Steel case with polycarbonate lens for impact and environmental protection
• 1/4-inch NPT center back mount for panel or direct pipe installation
• CRN certified, Series 1001T

Compatibility

Designed as an OEM-style replacement or new-installation commercial pressure gauge suitable for systems with 1/4-inch NPT center back mount connections operating in the 0 to 15 psi range.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or mechanical contractor in accordance with applicable local codes and the IPC. Shut off and depressurize the system fully before removing or installing any pressure gauge. Apply thread sealant or PTFE tape to the NPT threads per standard practice, and do not overtighten, as this can crack the gauge socket. Verify the system pressure range does not exceed the gauge maximum before returning the system to service.
