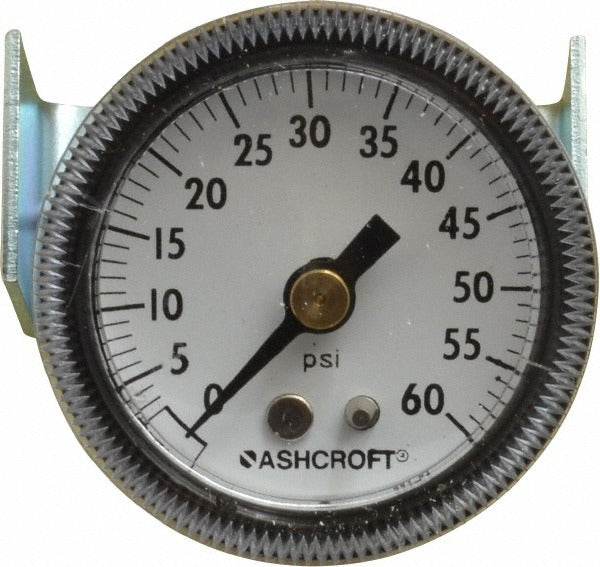

Ashcroft 662876000142 Pressure Gauge 0-60 Psi 1.5 in

Product Description

The ASHCROFT 662876000142 is a commercial-grade analog pressure gauge designed for use in fluid and gas pressure monitoring applications across HVAC, plumbing, and industrial systems. It features a 1.5-inch dial with a 0 to 60 psi range and delivers 3-2-3 percent of scale accuracy, meaning the reading stays within that tolerance across the lower, middle, and upper thirds of the scale. The steel case houses a bronze Bourdon tube mechanism, and the polycarbonate lens protects the dial face. This gauge is installed by licensed plumbers, HVAC technicians, and mechanical contractors as part of system commissioning, service, and monitoring work.

This gauge fits center back mount configurations and connects via a 1/8-inch NPT threaded port. It suits residential and light commercial applications where a compact, panel-style or pipe-mounted pressure indication point is needed. Typical installations include boiler systems, water supply lines, compressed air lines, and HVAC hydronic circuits where a reliable, readable pressure reference is required at a glance.

Key Features

• 1.5-inch analog dial for compact installation in tight spaces
• 0 to 60 psi range covers common low-pressure HVAC and plumbing applications
• 3-2-3 percent of scale accuracy meets commercial service standards
• Bronze Bourdon tube provides reliable pressure response and corrosion resistance
• Steel case construction with polycarbonate lens for durability
• 1/8-inch NPT center back mount for straightforward pipe connection
• CRN certified for use in applicable jurisdictions

Compatibility

Designed as an OEM-style replacement or new-installation commercial pressure gauge for systems using 1/8-inch NPT center back mount fittings with a 0 to 60 psi operating range. Part of the ASHCROFT 1001T series.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician. Depressurize and isolate the system before removing or installing the gauge. Use thread sealant tape or compound rated for the process fluid on the NPT threads, and do not overtighten, as this can damage the bronze Bourdon tube or crack the case. Verify the gauge range is appropriate for the system operating pressure before placing the system back into service.
