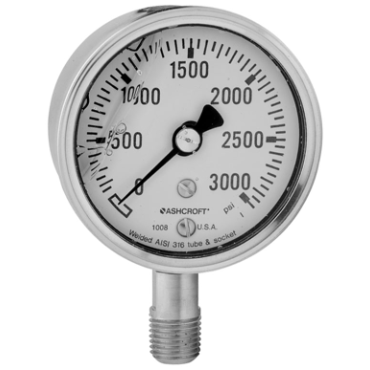

Ashcroft 631008SL02L300 Type 1008SL Stainless Steel-Case Gauge

Product Description

The Ashcroft 631008SL02L300 is a Type 1008SL stainless steel-case gauge designed for reliable measurement of liquid pressure. This gauge features an all-stainless, all-welded construction, ensuring durability and a long lifespan.

• Liquid pressure gauge suitable for various applications
• Includes a true zero pointer indication
• Features a 63 mm face diameter and a lower mount configuration

Product Highlights

This gauge is designed with a liquid-filled case to dampen vibrations and improve accuracy. It operates within a pressure range of 0 to 300 psi, making it ideal for numerous pressure measurement tasks.

Product Information

Standard Information

• Brand: Ashcroft
• MPN: 631008SL02L300

Technical Specifications

• Case Material: Stainless Steel
• Tube Material: Stainless Steel
• NPT Male: 1/4 in
• Temperature Range [Min]: 20 °F
• Socket Material: Stainless Steel
• Temperature Range [Max]: 150 °F
• Mounting Style: Lower Mount
• Gauge Pressure Range: 0 to 300 psi
• Face Diameter: 63 mm
• Pressure Range [Max]: 300 psi
• Gauge Type: Liquid
• Gauge Function: Pressure Gauge
• Pressure Range [Min]: 0 psi
• Weight: 0.4 LB
• EAN or UPC: 759426951952
