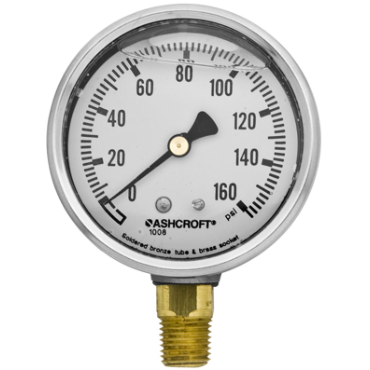

Ashcroft 631008AL02L100 Type 1008AL Grade B Stainless Steel-Case Gauge

Product Description

The Ashcroft 631008AL02L100 is a liquid pressure gauge designed for accurate pressure measurement in various applications. This gauge features a stainless steel case for durability and resistance to corrosion. It has a lower mounting style with a diameter of sixty-three millimeters and a pressure range from zero to one hundred PSI.

• Liquid pressure gauge
• Stainless steel case
• 1/4 NPT lower mount

Product Highlights

This gauge is ideal for use in environments where reliable pressure readings are crucial. It is equipped with a soldered brass socket and bronze tube design, ensuring longevity and performance. The Powerflex movement contributes to its ability to withstand shock and vibration.

Product Information

Standard Information

• Brand: Ashcroft
• MPN: 631008AL02L100

Technical Specifications

• Tube Material: Bronze
• Case Material: Stainless Steel
• Pressure Range [Min]: 0 psi
• Mounting Style: Lower Mount
• Temperature Range [Max]: 150 °F
• Temperature Range [Min]: 20 °F
• Pressure Range [Max]: 100 psi
• Gauge Pressure Range: 0 to 100 psi
• NPT Male: 1/4 in
• Gauge Function: Pressure Gauge
• Face Diameter: 63 mm
• Socket Material: Brass
• Gauge Type: Liquid
• Weight: 0.562 LB
• EAN or UPC: 662876003525
