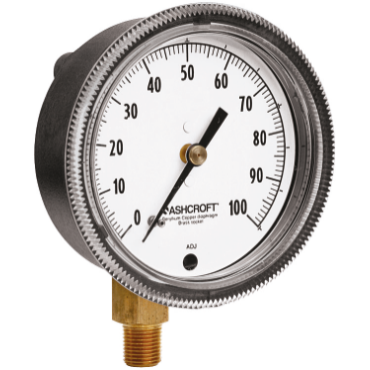

Ashcroft 251490A02L30IW Series 1490 Low Pressure Diaphragm Gauge 0 to 30 inH2O

Product Description

The Ashcroft 251490A02L30IW Series 1490 Low Pressure Diaphragm Gauge is designed for reliable pressure measurement in various applications. It measures both positive and negative pressures, using a durable diaphragm and a glass-filled polysulfone case.

• Face diameter of two and a half inches
• Lower mount with a quarter inch NPT connection
• Range from zero to thirty inches of water column

Product Highlights

This gauge is suitable for gas leak detection, air compressors, and other uses involving noncorrosive gases.

Product Information

Standard Information

• Brand: Ashcroft
• MPN: 251490A02L30IW

Technical Specifications

• Face Diameter: 2 1/2 in
• NPT Male: 1/4 in
• Pressure Range [Min]: 0 inH2O
• Gauge Type: Diaphragm
• Mounting Style: Lower Mount
• Gauge Function: Pressure Gauge
• Case Material: Glass Filled Polysulfone
• Gauge Pressure Range: 0 to 30 inH2O
• Pressure Range [Max]: 30 inH2O
• Socket Material: Brass
• Weight: 0.36 LB
• EAN or UPC: 759426954496
