Product Description

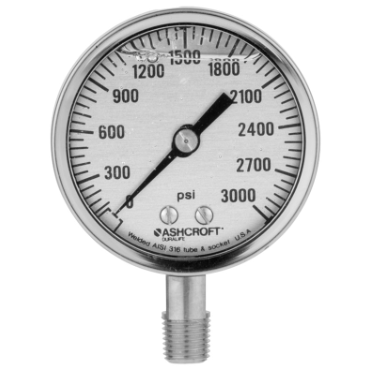

The Ashcroft 251009SWL02L3000 is a Duralife Pressure Gauge designed for measuring pressure in liquid applications. This gauge features an all stainless steel, all-welded construction which enhances durability and extends its service life. It incorporates a Powerflex movement that offers superior resistance to shocks and vibrations.
- Liquid pressure gauge for precise measurements
- Stainless steel case and components
- True zero pointer indication to avoid false readings
Product Highlights
This gauge is liquid-filled to reduce the effects of vibration and improve accuracy.
Product Information
Standard Information
-
Brand: Ashcroft
-
MPN: 251009SWL02L3000
Technical Specifications
-
Gauge Type: Liquid
-
Mounting Style: Lower Mount
-
NPT Male: 1/4 inches
-
Case Material: Stainless Steel
-
Pressure Range [Min]: 0 psi
-
Gauge Function: Pressure Gauge
-
Gauge Pressure Range: 0 to 3000 psi
-
Face Diameter: 2 1/2 inches
-
Tube Material: Stainless Steel
-
Pressure Range [Max]: 3000 psi
-
Socket Material: Stainless Steel
-
Weight: 0.506 LB
-
EAN or UPC: 759426942158
