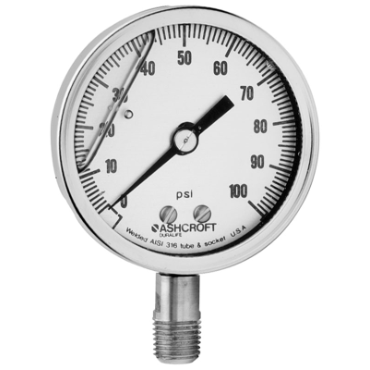

Ashcroft 251009SWL02L100 Duralife Pressure Gauge 0-100 psi

Product Description

The Ashcroft 251009SWL02L100 is a liquid pressure gauge designed for reliable measurement in various settings. This gauge features a lower mount and has a face diameter of two and a half inches. It operates within a pressure range of zero to one hundred psi. The construction includes a stainless steel case, socket, and tube, ensuring durability and performance.

• All stainless, all-welded design
• Powerflex movement for shock and vibration resistance
• True Zero pointer indication with liquid-filled case

Product Highlights

This gauge provides accurate readings with a five-year limited warranty. The ASME Grade 1A rating guarantees one percent accuracy across the full scale.

Product Information

Standard Information

• Brand: Ashcroft
• Part #: 103445252

Technical Specifications

• Socket Material: Stainless Steel
• Gauge Function: Pressure Gauge
• NPT Male: 1/4 in
• Tube Material: Stainless Steel
• Face Diameter: 2 1/2 in
• Pressure Range [Max]: 100 psi
• Pressure Range [Min]: 0 psi
• Case Material: Stainless Steel
• Gauge Type: Liquid
• Mounting Style: Lower Mount
• Gauge Pressure Range: 0 to 100 psi
• Weight: 0.5 LB
• EAN or UPC: 759426630772
