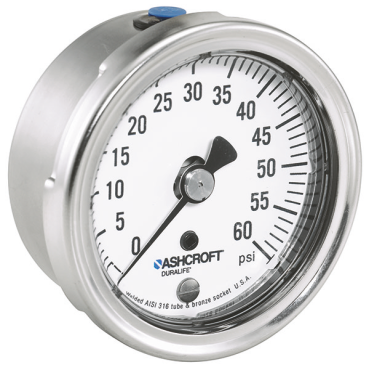

Ashcroft 251009AW02B60 Duralife Pressure Gauge 0-60 psi

Product Description

The Ashcroft Duralife Pressure Gauge with MPN 251009AW02B60 is designed for reliable pressure measurement. This gauge features a durable, all-stainless, all-welded construction that offers a long service life. The Powerflex movement enhances resistance to shock, vibration, and pulsation, ensuring accurate readings.

• Pressure Range: 0 to 60 psi
• Back mount design
• Two and a half inch face diameter

Product Highlights

Built to withstand harsh conditions, the Duralife Pressure Gauge provides true zero pointer indication without a stop pin, preventing false readings. The gauge is liquid-filled to protect against vibrations and shocks.

Product Information

Standard Information

• Brand: Ashcroft
• Gauge Type: Dry

Technical Specifications

• Gauge Pressure Range: 0 to 60 psi
• Face Diameter: 2 and a half inches
• Case Material: Stainless Steel
• Pressure Range Max: 60 psi
• Mounting Style: Back Mount
• Pressure Range Min: 0 psi
• Tube Material: Stainless Steel
• Socket Material: Bronze
• NPT Male: 1/4 inch
• Weight: 0.3 pounds
• EAN: 759426954236
