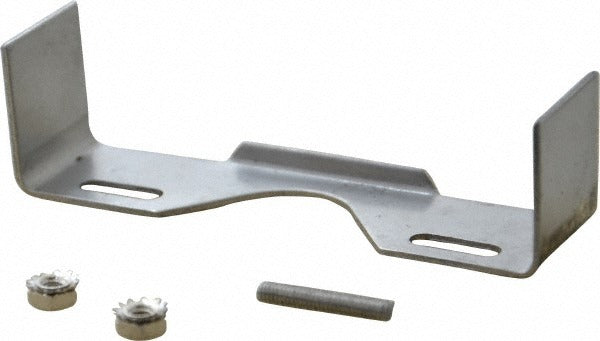

Ashcroft 101A164-02 U-clamp Pressure Gauge Mounting Kit

Product Description

The ASHCROFT 101A164-02 is a U-clamp pressure gauge mounting kit designed to secure pressure gauges in fixed panel or pipe installations. Constructed from 316 stainless steel, this mounting kit provides corrosion resistance in demanding environments where moisture, chemicals, or outdoor exposure are factors. The 1/4 inch thread size and U-clamp design allow for stable, vibration-resistant gauge positioning. Rated to 1 percent accuracy, the hardware is suited for instrumentation setups where reliable gauge alignment is critical. This kit is installed by HVAC technicians, plumbers, and instrumentation professionals working on process piping, mechanical rooms, and industrial or commercial fluid systems.

This mounting kit is compatible with pressure gauges requiring a U-clamp panel or surface mount configuration. It is designed for use with gauges featuring a 100mm dial diameter and a 1/4 inch threaded connection. Typical applications include HVAC system pressure monitoring points, water and steam distribution lines, and light industrial process equipment where gauges need to be mounted securely to panels, brackets, or pipe supports. The stainless steel construction makes it suitable for environments with elevated humidity or chemical exposure.

Key Features

• 316 stainless steel construction for corrosion resistance in wet or chemical-exposed environments
• U-clamp mount design provides stable, vibration-resistant gauge installation
• Compatible with 100mm dial diameter pressure gauges
• 1/4 inch thread size for standard gauge connections
• 1 percent accuracy rating supports reliable instrumentation setups
• Lightweight at 0.2 pounds for easy handling during installation

Compatibility

Designed for use with ASHCROFT 1008 series pressure gauges featuring a 100mm dial diameter and 1/4 inch thread connection. Verify gauge mounting style and thread specification before installation.

Installation Notes

This mounting kit should be installed by a qualified technician familiar with pressure instrumentation and applicable mechanical codes. Depressurize and isolate the system before attaching or removing any pressure gauge or mounting hardware. Use appropriate thread sealant rated for the system fluid and pressure range. Do not overtighten the U-clamp fasteners, as excess torque can distort the gauge case or compromise the seal.
