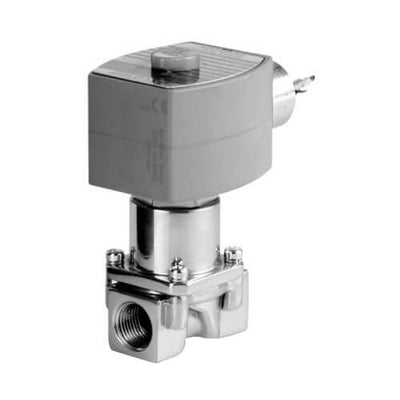

ASCO SV401A02V9CF7 SOLENOID VALVES & COILS
ASCO SV401A02V9CF7 SOLENOID VALVES & COILS

Asco SV401A02V9CF7 Valve 3/8 NC 0/300#FuelOil 120V

ASCO
Brand: ASCO
SKU: SV401A02V9CF7
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$2,159.84
$2,159.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ASCO SV401A02V9CF7 is a 3/8 NC solenoid valve designed for fuel oil systems operating up to 300 PSI. Made from brass with a Viton diaphragm, it operates normally closed and is direct-acting for reliable performance.

  • 3/8 NPT female ports
  • Pressure rating: 0-300 PSI
  • 120V coil

Product Highlights

ASCO’s solenoid valve SV401A02V9CF7 ensures the controlled flow of fuel oil in burner systems and other industrial applications.

Product Information

Standard Information

  • Brand: ASCO
  • MPN: SV401A02V9CF7

Technical Specifications

  • Inlet Size: 3/8 NPT
  • Outlet Size: 3/8 NPT
  • Max. Inlet Pressure: 300 PSI
  • Media: Fuel oil
  • Temperature Range: -40 to 180 degrees Fahrenheit
  • Coil Volts: 120VAC
  • Material: Brass
  • Diaphragm: Viton
