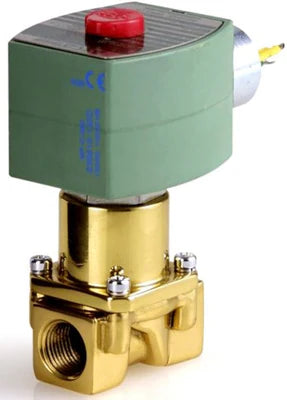

Asco SV401A02V9BF7 Brass Body Direct Acting Fuel Oil Shutoff Valve, 1/4 Pipe Size, 2-Way Normally Closed, Fluorocarbon Elastomer Sealing, 1/2 Orifice, 1.1 Cv Flow, 120V/60 Hz, 110V/50 Hz

Product Description

The Asco SV401A02V9BF7 is a brass body direct acting fuel oil shutoff valve designed for reliable control in fuel oil systems. This valve features a quarter inch pipe size and operates as a two-way normally closed unit.

• Fluorocarbon elastomer sealing for effective performance.
• 1/2 inch orifice for optimal flow.
• Compatible with both 120V/60 Hz and 110V/50 Hz power supplies.

Product Highlights

This valve efficiently controls flow in fuel oil applications with precision and durability.

Product Information

Standard Information

• Brand: Asco
• MPN: SV401A02V9BF7

Technical Specifications

• Pipe Size: 1/4 inch
• Orifice Size: 1/2 inch
• Flow Coefficient (Cv): 1.1
• Voltage: 120V/60 Hz and 110V/50 Hz
• Pressure Rating: 0 to 300 psi
• Operating Temperature Range: -40°F to 150°F
• Body Material: Brass
• Seal Material: Fluorocarbon elastomer
